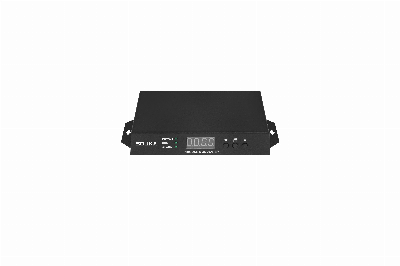

Single HDMI Input Mepg2 Encoding Modulator DVB-C RF out

Detailed PhotosThe SKD201X is the most cost-effective and smallest digital modulator in the market.Input HD signal can be modulated into various formats, such as ATSC, DVB-C (J.83A/J.83B), DVB-T, ISDB-T and DTMB after being encoded by MPEG2 standard.With the second HDMI output port and a RF loop port, user can easily install the system with different requirements.Extremely compact and wall mountable, which can be widely used in home entertainments, security monitoring, Hotel TVs and Shopping Mall advertisements, etc..  Product ParametersExtremely compact with less than 3cm heightSupport MPEG2 EncodingIntegrated HDMI output for HD content quick displayHigh combined output level with 45dBmV MAXBuilt-in Web UI, display panel, allows easy set-up and control Specification  HDMI Video Encoding MPEG-2  InputResolution 1920*1080 60P,1920*1080 50P,1920*1080 60i,1920*1080 50i,1280*720 60P,1280*720 50P  Bite Rate1-19.5Mbps AudioEncoding MPEG 1 Layer II / AC3  Sample Rate48KHz/44.1 KHz/32 KHz  Bite Rate384KbpsPSIPMGT,CVCT,STT,RTTProgrammable program name,pmt PID,Video PID,Audio PIDModulation DVB-TStandardDVB-T COFDM ISDB-TStandard ARIB STD-B31Bandwidth6/7/8 MHzBandwidth 6 MHzConstellation QPSK,16QAM,64QAMConstellation DQPSK,QPSK,16QAM,64QAMCode Rate1/2,2/3,3/4,5/6,7/8Guard Interval1/32,1/16,1/8,1/4Guard Interval 1/32,1/16,1/8,1/4Transmission 2K,4K,8KTransmission 2K,4K,8KMER≥40dBMER≥40dBDTMBStandard GB20600-2006J.83A/CConstellation 16QAM,32QAM,64QAM,128QAM,256QAMFFT1,3780,1+PilotMER≥40dBMER≥40dBSymbol Rate5~6.900MspsFEC0.4,0.6,0.8Standard Annex A/CInter-leaveMode420,595,945,420var,945varJ.83BConstellation 64QAM   256QAMSync Frame240,720MER≥40dBConstellation 4QAM-NR,4QAM,16QAM,32QAM,64QAMCable StandardHRC  IRC  or  STDATSCMER≥40dBSymbol Rate5~6.900MspsStandard 8VSBStandard Annex BRF OutputRF50~999.MHz in 1MHz step Output Level≥45dBmVOut-band Rejection≥60dBGeneralDimension 199*109*61.7mmWeight 1.5KGPower SupplyDC 12V 1AConsumption
