Digital Headend CATV RF Modulator DVB-C Digital Qam Modulator

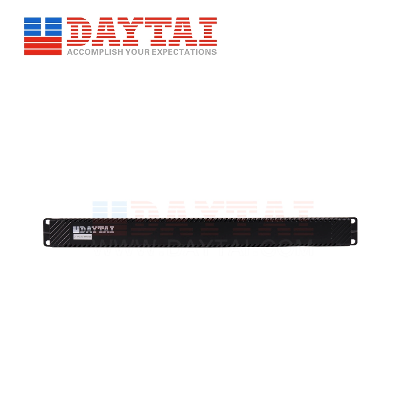

Digital Headend CATV RF Modulator DVB-C Digital QAM Modulator   ★DescriptionDT-IPQAM-M9016B is a new compact (1RU only) chassis and cost-effective IPQAM modulator, which is designed by Hangzhou DAYTAI according to the DVB related standards. DT-IPQAM-M9016B has one module ( Max. number is up to four on the same chassis ), it is equipped with one GbE RJ45 and SFP port as IP input, the RF output supports 64/128/256QAM modes. The DT-IPQAM-M9016B has very convenient management interface, with friendly WEB based management system and compatible with SNMP standard.★Features   ⊙Support SFP/RJ45 GbE IP input ⊙Adjustable Symbol Rate up to 7Mbaud ⊙Support 1.15MHz~8.05MHz bandwidth ⊙Support 64QAM,128QAM,256QAM ⊙In 1RU, up to 16 frequencies ( non-adjacent) ⊙WEB based management and supports SNMP ⊙Support EPG XML file import. (File size less than 10M). ⊙Support MPTS and SPTS over IP input, up to 512 UDP ⊙Max. effective bit rate up to 51.6Mbps (SR=7Mbaud, 256QAM) ⊙Support 2 to 4 CA Simulcrypt, compatible with multiple conditional access systems ⊙Support IP input interface and able to re- multiplex and scrambling single or multiple programs ⊙Nominal RF Output power ≥102dBuV (with 0~10dB adjustable attenuation range) and 50M~1GHz frequency range   ★Specification   ParameterSymbolDescriptionUnitRemarkMechanical dimensionHeightH42mmAbout 1UWidthW434mmAbout 17"DepthD340mm   IP InputType-LC     Connector-SFP or RJ45     Max. throughput-1.25Gbps   Compatible protocol-IP V4, UDP, RTP,ARP     Multiplexing and scramblingInput channels   512 UDP     Max PID   512 PID per freq     Scrambling channels   4     Function   PID remapping     RF OutputImpedance-75W   Output channels   16     Connector-F-Type(Female)NA   Frequency-50~863MHz   Output level-≥102dBuVAdjustableModulation SpecificationModulation scheme   64/128/256QAM     Standard   ITU-T J.83 Annex A/C     Symbol RateSR1~7Mbaud   BandwidthBW1.15~8.05MHz   Effective output bit rate   ≤51.6MbpsSR=7Mbaud, 256QAMModulation Error RateMER≥33dBNo equalizer, -8dBm, 64QAMBit Error RateBER≥9x10E-9   After FEC, 64QAMCarrier to NoiseC/N≥43dBOutput level - 8dBmManagement for IPQAM modelType   10/100BASE-T     Connector   RJ45     Max. bitrate   125Mbps   Order InformationModel NumberDescriptionAdapterWay To installationDT-IPQAM-M9016BOne module, QAM Modulator, RF output support 16~256QAM modes, up to 16 frequencies, output frequency range is 50~863MHz,SR=1~7MbaudWithoutWall Mounting or Add Telegraph Pole Mounting is optional.DT-IPQAM-M9032BTwo module, QAM Modulator, RF output support 16~256QAM modes, up to 16*2 frequencies, output frequency range is 50~863MHz,SR=1~7MbaudPCS SC/APC OR 8PCS SC/UPC AdapterDT-IPQAM-M9048BThree module, QAM Modulator, RF output support 16~256QAM modes, up to 16*3 frequencies, output frequency range is 50~863MHz,SR=1~7Mbaud5PCS SC/APC OR SC/UPC Adapter is optional.DT-IPQAM-M9064BFour module, QAM Modulator, RF output support 16~256QAM modes, up to 16*4 frequencies, output frequency range is 50~863MHz,SR=1~7Mbaud10PCS SC/APC OR SC/UPC Adapter is optional.DT-FDB-08FC24-D1PCS 1x8 PLC Splitter9PCS SC/APC OR SC/UPC Adapter is optional.Our Workshop  Our advantages * As a world class manufacturer we can ensure you are getting world class quality at a competitive  price. * We pride ourselves on earning our clients repeat business. We ensure customer satisfaction by ensuring all out products meet world ISO 9001, SGS, CE standards and best manufacturing practices. * We also pride ourselves by ensuring we give you our client the best service and experience dealing with a reputable manufacturer. Customer first, service foremost If you have any other questions, please feel free to contact with me. I will reply you at my first time. Thank you for visiting our products, have a good day:)           /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
