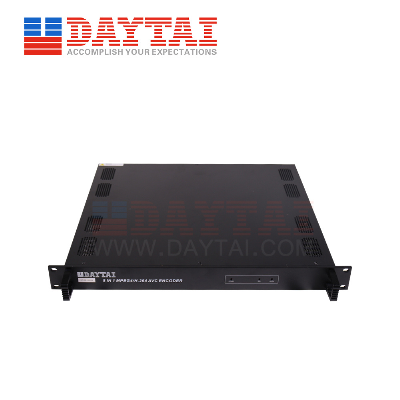

Satellite Digital TV H. 264 SD/HD 8 in 1 Encoder

★Description DT-DE-H820B MPEG-2/H.264 AVC SD/HD encoder is a new generation professional digital TV encoder which supports up to 1920x1080i video format and equipped with TS over IP output. DT-DE-H820B is designed and manufactured by Hangzhou Prevail Company according to ISO/ICE 14496-10, ITU-T H.264, IEEE802.3 and related international standards. It is a high quality and cost-effective product for H.264/MPEG-2 HD/SD video/audio encoding application. DT-DE-H820B supports HDMI input, ASI input, has two ASI output ports and one port of TS over IP, support MPTS and SPTS. The user can manage the device easily through the 100M Ethernet port.input interface:(8xHDMI,1xASI),ASI Output interface :(ASI Output: 2Ports,Connector:BNC,Maximun bit rate:108Mbps,TS packet format:188 or 204 Automatic detection),IP Output:(Type:10/100/1000BASE-T,Connector:RJ45,Compatible protocol:IP V4, UDP, ARP,),Encoding Parameters:(Video Encoding:1920x1080i (H.264) / 720x480i/576i(MPEG-2),Audio Sampling Freq:48KHz,Audio Rate:64,128,192,256,384Kbps(Adjustable),Output rate(each channel):1~20Mbps(H.264),1~14Mbps(MPEG-2) Adjustable.Dimension:42mm*434mm*340mm,Power Supply:110V OR 220V AC,American Standard or European Standard Power Plug is optional. ★Features⊙Support Group of Pictures.⊙Support 8 channels encode⊙Support MPEG-1 audio layer 2⊙Support HDMI inputting interfaces⊙Support 1xASI input and multiplexing⊙IP module(option) 8*SPTS or 32*SPTS⊙Support 1920x1080i video format(H.264)⊙Support CBR/VBR(MPEG-2) and VBR(H.264)⊙Support 720x480i(576i) video format(MPEG-2)⊙Remote network management and online update⊙Setting program and supplier name through internet★Application⊙Video monitoring⊙Video conference⊙Remote video education⊙Video on Demand(VOD)⊙Digital TV head-end system★Compatible⊙IEEE802.3⊙ITU-T H.264 ⊙ISO/IEC 14496-10 Advanced Video Coding (AVC) ★Product SpecificationTable 2 - Technical Specifications  ParameterSymbolDescriptionUnitRemarkMechanical dimensionHeightH42mmAbout 1UWidthW434mmAbout 17"DepthD340mm Input interfaceInterface type 8X HDMI  Interface type 1xASI  ASI Output interfaceNumber of ASI output-2  Impedance-75W Connector-BNCNA Maximum bit rate-108Mbps TS packet format-188 or 204ByteAutomatic detection  ★PicturesOur advantages* As a world class manufacturer we can ensure you are getting world class quality at a competitive price. * We pride ourselves on earning our clients repeat business. We ensure customer satisfaction by ensuring all out products meet world ISO 9001, SGS, CE standards and best manufacturing practices. * We also pride ourselves by ensuring we give you our client the best service and experience dealing with a reputable manufacturer. Customer first, service foremost If you have any other questions, please feel free to contact with me. I will reply you at my first time. Thank you for visiting our products, have a good day:)     /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
