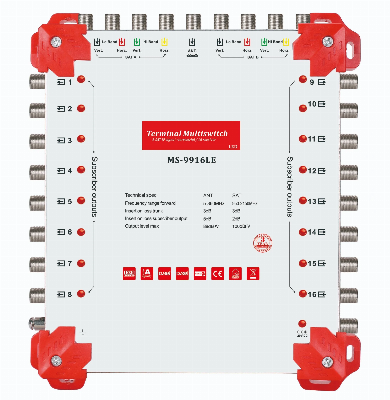

High Performance Multiple Inputs Satellite Switch Diseqc Multiswitch

Product DescriptionQuick Detail1)Multi-Port Satellite Switch2)Support 13/18V, 0/22KHz3)SAT&ANT Inputs4)Build-in Amplifier Circuit5) DiSEqC 1.0/2.0Features of Satellite Switch-Top quality tinplate housing and exquisite plastic case shell attached, making installation convenient.-Excellent quality component, professional amplification design, and low loss.-An external 20V, 700mA DC power offering more stable operation.-13/18V, 0/22KHz supplied by satellite receiver through coaxial cable to switch corresponding port.-Capable of connecting four SATV signals, one ANT signal, or FM broadcast simultaneously.-Four SATV signals switched through 13/18V, 0/22KHz.-Distributed into eight subscribers to use simultaneously and with no mutual interference.-Applicable to multi-satellite and multi-receiver usage.Detailed PhotosProduct Parameters ItemSpecificationItemSpecificationFrequency Range ANT5-860(MHz)Return Loss ANT Input12(dB)Frequency Range SAT950-2150 (MHz)Return Loss Outputs8(dB)Insertion Loss ANT0 (dB)Output Level ANT88(dBuV)Insertion Loss SAT2 (dB)Output Level SAT100(dBuV)Isolation In-In SAT25(dB)Normal Working Voltage12-20 (V)Isolation In-In SAT/ANT25(dB)DC Power Consumption100(mA)Isolation Between Outputs25(dB)Supply Voltage(VDC)20V( ±1 ) 700mASwitching Isolation SAT Inputs28(dB)Temperature Range-20ºC -60ºCReturn Loss SAT Inputs10(dB)Impedance(all ports)75(Ω)Company ProfileFAQ FAQ 1. What are the payment terms that you support? Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment that are more convenient for you. 2. What about the lead time? Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends. 3. How about the shipping? When the package is small, we normally choose FedEx, DHL, TNT, UPS, and so on, while the goods have high weight and volume, we suggest using air or sea shipment. 4. How can I place an order? (1) Negotiation is agreed upon for the product price and specifications. (2) The Proforma invoice will be sent for confirmation. (3) After the agreement on the proforma invoice, the customer makes the deposit. (4) Manufacturing will be started as soon as the payment is confirmed by our bank. (5) Ship out the goods within the agreed delivery deadline. 5. Can you do OEM for us? Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you. 6. How about the Warranty? There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
