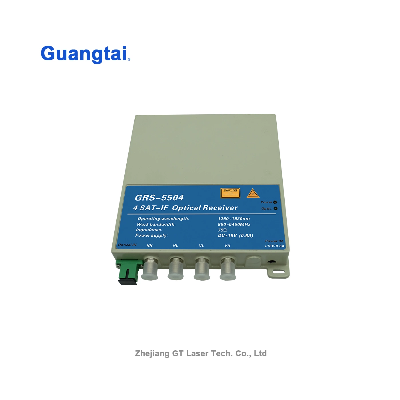

Guangtai 4 Sat-If Satellite Optical Receiver 950~5450MHz Grs-5504

Product DescriptionGRS-5504, a kind of 4-band SAT -IF O/E converter, which makes the superposed 4 ways SAT-IF signals in the band 950~5450MHz that transmitted by optic signal cleavage overlay and revert to standard VH,VL, HH, HL 4 ways SAT IF signal (SAT-IF) to output. It can connect 4 * N satellite multi-channel switch, and then serve for multi-users.GRS-5504/WD, GRS-5504/WF, can be compatible with any FTTx PON, to realize internet, Full-Band SAT-TV & CATV Triple-ply network and FTTH.GRS-5504 the forepart of the satellite antenna adopt satellite channel overlay LNB, such as TOL32, TWL01.Product Features1. Adopt one fiber to transmit 4 ways polarization SAT-IF signal well2. GRS-5504 (Can connect 4*N multi-switch)Main Application1. FTTH for DBS2. Triple-play Overlay DVB-S3. 4 SAT - IF overlay/ cleavage overlay optical fiber linksTechnical IndexPerformanceIndexSupplementMin.Typ.Max.OpticalfeatureCATV work wavelength(nm)1260 1620GRS-55041540 1563GRS-5504/WF, GRS-5504/WDPass wavelength(nm)1310, 1490GRS-5504/WDChannel isolation(dB)40   Responsibility(A/W)0.85  1310nm0.9  1550nmReceiver power(dBm)-15   Optical return loss(dB)4045 FC/PC, SC/PC5560 FC/APC, SC/APCOptical fiber connector SC/APCOptional FC/APC, SC/PC, FC/PCFrequencyfeatureReception frequency range4 SAT-IF Converted(MHz)950 5450 VL Converted950 1950 VH Converted1950 3000 HLConverted3000 4400 HHConverted4400 5450 Frequency rangeOutputVL(MHz)950 1950 VH1100 2150 HL950 1950 HH1100 2150 Gain ripple across band(dB)-3.0 +3.0 Gain ripple across 40MHz(dB)-0.5 +0.5 Channel isolation(dB) 30  In band spurious power(dB)-25   Out band spurious power(dB)  -60 Gain range(dB)-1.0 36 Output level(dBm)-65 -25 Integrated phase noise(dB) 4.0 1KHz~13KHzOIP3(dB)+10   Output return loss(dB) 10  Output impedance(Ω) 75  RF number of connector   4  RF connector F-Female GeneralfeaturePower supply (DC)(V) +18  Power consume(mA)  300 External power supply input (V)90 265 Operating temp.(ºC)-30 +60 Storage temp.(ºC)-40 +70 Size(mm)143 ×167×27(W)x(D)x(H)Flow ChartShipping Mode       FAQ1. What are the payment terms of payment?Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.2. What about the lead time?Usually, if there's stock, we ship the goods within 5-7 working days after the deposit is confirmed. If it is out of stock, the lead time depends.3. How about the shipping?When the package is small, we will deliver the goods via international Express like FedEx , DHL,TNT and UPS and so on. Door to door delivery service will be provided; while the goods have high weight and volume, we suggest using air or sea shipment.4. Can you do OEM for us?Yes. if there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.5. What are the advantages of your products?A. Good quality and competitive pricesB. Strict quality control during production process.C. Professional operations in processes of production, sales, assembling, packaging and shippingD. Good after-sale service. Professional online technical support can be provided. Moreover, if there is any problem of the goods, we will help to solve the problem or provide replacement of the goods6. How about the Warranty?There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
