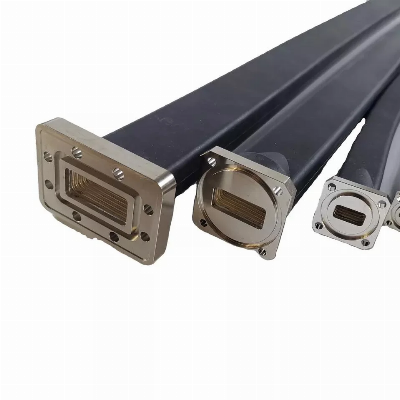

Good Quality Flexible Microwave Waveguide

Good Quality Flexible Waveguide Twistable Microwave Waveguide  Flexible waveguide is an indispensable connector of microwave device. Generally, it is diamond -type. Generally, there are two flanges on each side, which is one without a slot, one is a slot. If you do it, it is still silver plating if it is required. The main part of the soft waveguide is mainly made of rubber. The surface of the surface is relatively high, and the material is not easy to weather. At present In foreign technology, if the indicator requirements are not high. Specification:  Model number WR51-WR229/BJ40-BJ180 Frequency(GHz) 3.22-22.0 VSWR ≤1.15 Insertion loss(dB) 0.15 Average power(Kw) 2.5 Peak power(Kw) 500 Material Silver plated copper strip Coating Silver Outer Jacket Black silicone rubber Length(mm) 50-3000 Max Twist (deg/m) 132-445 Min Bend Radius E Plane(mm) 50-165 Min Bend Radius H Plane(mm) 100-330 Operation temperature(ºC) -55~ 85 Interface Flange Flange type PDR/PBR/UDR/UBR/CAR/PAR/UAR/CBR/PCR/VCR/UER Certificate ISO, RoHs fitting kit Screw, nuts, gasket,grease etc Picture :       Shipment:We can send the goods as your requirement,Small goods suggest ship by Express.like EMS,HK post,DHL,FedEx.Large quantity suggest ship by SeaContact us: Any question and more information,please feel free to contact me,I will reply you within 24 working hours. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
