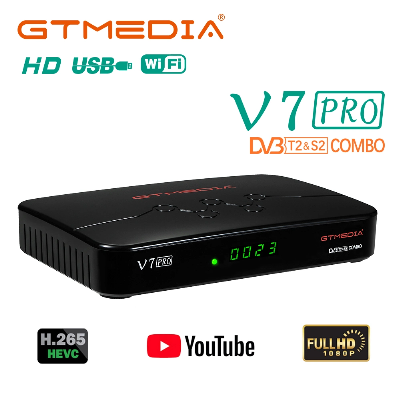

Gtmedia V7 PRO DVB S2X T2 Digital TV Satellite Receiver

GTMEDIA V7 PRO (SET TOP BOX)    Highlight:1. Support DVB-S/S2/S2X+T/T2, VCM/ACM/multi-stream/T2MI, Multi-PLP, HEVC main 10 profile(10bit), AVS+2. Support BISS auto roll, Full PowerVu, DRE &Biss key3. Support CA card slot and multi-room4. Support Albertis/Tivusat/BBC Satback5. Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support6. Support Full speed USB 3/4G dongle and USB wifi dongle7. Support Online Movie (Youtube,Youporn)8. Support CCCAM, NEWCAM, MGCAMTechnical support website : www.freesat.cn.Note: We reserve the right to change the design and OEM/ODM supportedVideo Decode Video Decode HEVC main profile@level 4.1 and main10 [email protected],High tierMPEG-2 MP@MLH.264 BP,MP&HP@L3/L4.1/L4.2AVS Jizhun profile and broadcast profileMPEG-4 SP profile, advanced simple profile@L5VC1 SP@ML, MP@HL, AP@L0-3H263 baseline profileJPEG decoderPAL/NTSCAutomatic PAL/NTSC conversionAspect RatioAuto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter BoxVideo effectsStandard, Default, Vivid.Video Resolution1080P, 1080I, 720P, 576P, 480P, 576I, 480IHDMI Color SpaceRGB, YUV422, YUV444, AutoAudio DecodeAudio DecodeMPEG-1/2 Layer 1/2/3, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC,Dolby AC3/AC3+, DRA CH/5.1CHSound Mode LEFT/RIGHT/STEREO/MONOSampling Frequency 32KHz,44.1KHz,48KHzAudio OutLPCM Out, BS OutUSB DecodeUSB 2.0Support FAT/FAT32/NTFS big capacity hard diskPVR OptionUSB 2.0 for PVR,TIMESHIFT,media files playbackMedia CodecTS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp filesAudio CodecWMA,MP3Photo CodecJPG, BMP, PNG, GIFHardware specificationsRF TO TVRF TO TV (CH11:209.5MHZ) Panel display4-digit LED displayLED IndicatorPower ON :Green; Standby :Red ButtonNCWifiSupport USB Wifi dongle (MTK7601/RT5370)IRExit IR for 38KHz,Infra Remote controlRear PanelLNB IN  (Frequency Range950MHz to 2150MHz DVB-S/S2/S2X)ANT IN  ( IEC-type IEC169-2 Female DVB-T/T2 for 174-862M)HD OUT(up to 1080P)AV OUT (3.5MM*18MM Jack/4-Pin:Red-White-Yellow-GND)RF TO TV (CH11:209.5MHZ) 2*USB 2.0 HOSTRS232CA card slotPower (DC 12V/1.5A)PackingProduct Dimension180*125*30mmPackaged Size265*165*53MMCarton Size 545*395*355CM  (28pcs/ctn)Unit Weight0.45 Kg with gift boxCarton Qty&Weight28 pcs/Carton, 13.0 kgsAccessoriesGift Box, Adapter, IR remote control, HDMI Cable, User Manual,Warranty card PhysicalsPower SupplyAC 100-250V,50Hz/60Hz  Power Consumption10W in operation
