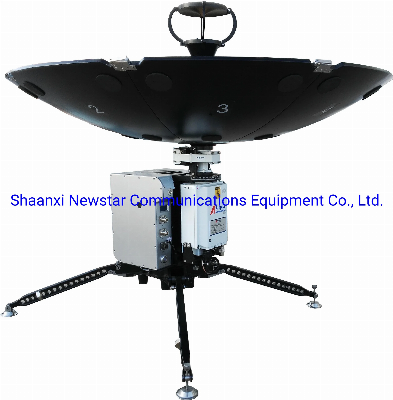

1.2m Ku Band Automatic Flyaway Rx/Tx Antenna

1.2m automatic flyaway vsat system is with super portable, automatic working, strong environment adaptability features etc. It aims at the large capacity communication and the users that has strict request for the antenna portability. 1.2m automatic flyaway vsat system is equipped with the equivalent diameter 1.2m high performance carbon fiber parabolic ring focus antenna and new media feed system, the medium feed adopts integration structure design, it can configure 40W BUC, which can meet the average user medium capacity communication needs. 1.2m automatic flyaway vsat system consists of 3 parts: 1.2m reflector system, feed system and mount system, easy assemble and disassemble without any tools. General performanceSet up Time≤5Mins(From open the package to satellite-finding finished)Satellite-finding time≤3MinsCollection Time≤3Mins(From disassemble to packed finish)Antenna typeFeed-forward ring focus parabolic antenna Equivalent aperture1.2mAntenna reflectorCarbon fiber 8 pcs line segmentationWorking modeAZ/EL automatic, Po manual Control modeWired or wireless PC, wireless terminal, one-key functionPositioning modeStandard configuration: Onboard GPS + built-in latitude and longitude database automatic retrieval call Optional configuration: on-board GPS Beidou dual-mode+built-in longitude and latitude data automatic searching BUC monitoring Available BUC state real-time monitoring, showing output power, 10M locked, whether turn on, attenuation set-up, auto RF output control etc. (Available for some BUC brand)RF characteristic (Ku band )NameReceiveTransmitOperating Freq. 10.7~12.75 GHz13.75~14.50 GHzGain41.6+20log(f/12.5)dBi42.8+20log(f/14.25)dBiThe first sidelobe≤-14dB≤-14dBSidelobe envelope29-25*logθ dBi   1°≤θ≤20°-3.5        dBi  20°
