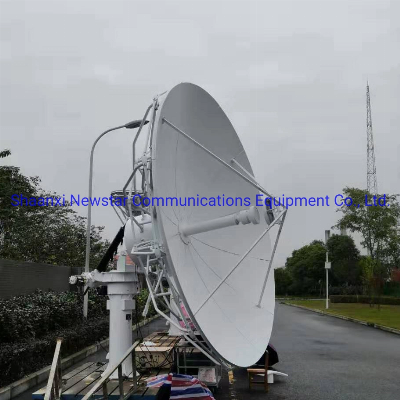

3.7m Motorized Full Motion Earth Station Antenna

3.7m Rx/Tx antenna characteristics:Meets or exceeds CCIR 580 and INTELSAT requirements;Meets INTELSAT, ASIASAT, CHINASAT network access requirement; Ring focus designed;High gain, low sidelobe, High G/T rate;Hot-dip zinc processed Antenna mount, with strong corrosion resistant ability;2-port or 4-port optional; Reasonable structure and easy operation.3.7m Rx/Tx antenna standard configuration:Main reflector, subreflector, subreflector support, back support frame, kingpost, feed, solid wretch, foundation kit and standard component. 3.7m Rx/Tx antenna optional parts:BUC, LNB, Modem, spectrum analyzer, moving foundation, de-icing equipment, BUC fix bracket, servo control system, motorized polarization, 4-port feed, lightning protection device, installation tools, cable and connector.  Operating frequency (GHz) ReceiveTransmitReceiveTransmit3.625~4.25.85~6.42510.95~12.7513.75~14.5Gain, Mid-band (dBi)≥41.47 @3.95GHz≥45.39 @6.2GHz≥51.48 @12.5GHz≥52.62 @14.25GHzPolarizationLinear/CircularLinearVSWR1.25:11.25:1Cross polarization Isolation, dB≥35≥35Circular polarisation axial ratio≤0.75/Noise Temperature(K)10° EL35°K/49°K/30° EL26°K/39°K/50° EL25°K/35°K/G/T dB/K,20°El23.14 dB/K (30°LNA)/30.42 dB/K (70°LNA)/-3 db beam width1.39°0.89°0.44°0.385°Feed insertion lose (dB)≤0.2≤0.2≤0.3≤0.3Tx.Power Capability,Kw/5/2Isolation,Tx to Rx,dB≥85≥85Feed interfaceCPR-229GCPR-137GWR-75First side lobe≤ -14Side lobe envelop29-25 log(θ) dBi    1°≤θ≤20°Mechanical specificationAntenna aperture3.7mReflector typeRing focusSurface accuracy (RMS)≤0.5 mmPanel QTY12 pcsPanel materialAluminumPanel Surface treatmentCompressed by aluminum, degreased and based with yellow zinc paint and finished with antirust white paintSteel parts surface treatmentPrimer base + hot sprayed paint+ anti-rust finish paintAzimuth travel0°~360°Elevation travel5°~90°Polarization travel±90°Drive modeAZ/EL/Pol motorized or manual availableMount typeEl over Az, single poleEnvironmental specificationOperational wind72kmph wind speed(Hold the precision)Survival wind216kmph wind speed(Upturned lock)Ice load13mm wrapped ice normal work25mm wrapped ice survivalTemperature-30ºC~50ºCRelative humidity100%Solar radiation1135Kcal/h/m2  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
