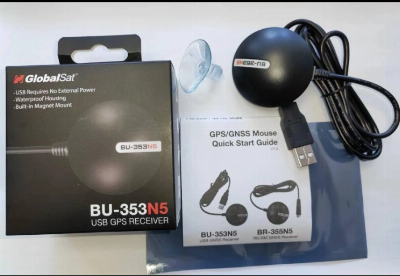

Bu-353n5 Br-355n5 USB Gnss GPS Receiver

Basic Info.Model NO.1. BU-353N5ApplicationIndustrial, Commercial, Residential / General-PurposeCustomizedNon-CustomizedUsageHand Held, TV, Automotive, LattopWave RangeC Wave Range ProgramTypeOutdoorVoltage4.5-6.5VWater ResistantIpx6PowerUSB 2.0TrademarkGlobalsatTransport PackageBoxSpecification9X9X5CMOriginCnHS Code8517691001Product DescriptionBU-353N5 USB GNSS receiver BR-355N5 GNSS receiver replacing PS2 GPS RECEIVER usb BU353 S4 gps receiver windows 10DescriptionBU-353N5 features a USB interface, high GNSS sensitivity, and low power consumption.The BU-353N5 is powered by High sensitivity GNSS solution. The cable allows for easy routing to your equipment behind, headliners and side panels and terminates to a custom USB connector. FeaturesHigh sensitivity solutionVery high chipset sensitivity (Tracking Sensitivity: -165 dBm)Extremely fast TTFF (Time To First Fix) at low signal levelSupport NMEA 0183 data protocolBuilt-in Backup power to reserve system data for rapid satellite acquisitionBuilt-in patch antennaSuper-cohesive magnetic for mounting on the carWater resisted and non-slip on the bottomUSB interface connection portLED indicator for GPS fix or not fixLED OFF: Receiver switch offLED ON: No fixed, Signal searchingLED Flashing: Position Fixed  Package Included:1 X GlobalSat BU-353N5 USB GPS Module1 X CD   Specification:AccuracyPosition Horizontal  : > position, velocity, altitude, status and controlNMEA 0183 MEA0183 V3.0 protocol, and supportsDynamic ConditionAcceleration  : Limit Less than 4gAltitude Limit  : 18,000 meters (60,000 feet) max.Velocity Limit  : 515 meters/sec. (1,000 knots) max.Jerk Limit  : 20 m/sec**3TemperatureOperating  : -40°~ 80°CStorage  : -40°~ 85°CHumidity  : Up to 95% non-condensingPowerVoltage  : 5V ±5%Current  : 60mA typicalPhysical CharacteristicsDimension  : 2.32" x 1.65" x 0.82" (59mm x 47mm x 21mm)USB Cable Length  : 60" (152 cm)BU-353N5 USB GNSS receiver BR-355N5 GNSS receiver replacing PS2 GPS RECEIVER usb BU353 S4 gps receiver windows 10usb gps receiver windows 10satellite gps receivergps receiver chipnovatel gps receiverusb gps antennagps receiver usbgps receiver usbbluetooth gps receiver for ipadusb gps for laptopgps receiver garminbluetooth gps receivergarmin gps receiverusb gps receiver for androidgps receiver bluetoothbluetooth gps receivergps transmitter and receiverglobalsat usb gps receivergps receiver antennausb gps receivergps m code receiverusb gps pythongps receiver usbdayz gps receivergps rtk receivergps receiver modulegps receiver for ipadusb gps receiver ugr 86 drivergps usb receiver drivergps receiver antennagps receiver dayzusb gps receiver drivergps waas receivergps receiver bluetoothgps receiver block diagramdual gps receivergps bluetooth receiver for ipadgps receiver forestrygps receiver definitionjohn deere gps receivergps dual frequency receiverBU-353N5 USB GNSS receiver BR-355N5 GNSS receiver replacing PS2 GPS RECEIVER usb BU353 S4 gps receiver windows 10GlobalSat GPS Receiver: BU-353S4 & BR-355S4BU-353S4 is a USB GPS receiver that features a highly sensitive, low power consumption chipset in a ultra compact form factor. Features:*SiRF Star IV high performance GPS Chipset*Highly sensitive (Tracking Sensitivity: -163 dBm)*Extremely fast TTFF (Time To First Fix) at low signal level*Support NMEA 0183 data protocol*Built-in SuperCap to reserve system data for rapid satellite acquisition*Built-in patch antenna and magnetic pad*Super-cohesive magnetic for mounting on the car*Waterproof and non-slip on the bottom*LED indocator for GPSSpecifications:Chipset: SiRF Star IVFrequency: L1 1575.42MHzC / A code: 1.023 MHz chip rateNumber of Channels: 48 channelstracking Sensitivity: -163 dBmAccuracy:Location: 10 meters, 2D RMS 5 meters, 2D RMS, WAAS enableRate: 0.1 m / sTime: 1 microsecond synchronized satelliteCoordinate information:Default: WGS-84Acquisition Time:Readmission: Average 0.1 secondsHot Start: Average 1 secondsWarm start: 38 sec averageCold and warm start: 42 sec averageRelated restrictions:Height: 18,000 m (60,000 ft) maximumRate: 515 m / sec (10,000 knots)maximum Gravity: Less than 4GPower:Main power input: 4.5V ~ 6.5VDC input Power consumption: 80mAAgreement:Operational level: TTL levelOutput Voltage: 0V ~ 2.85VTransfer rate: 4,800 bpsOutput format: NMEA 0183 GGA, GSA, GSV, RMC, VTG, GLLPhysical Characteristics:Size: 53mm diameter, 19.2mm heightCable length: 1.5 m Operating temperature: -40 ° C to +85 ° CPackage Included:1.USB GPS Receiver2.Suction Cup3.CD Driver with user manualBU-353N5 USB GNSS receiver BR-355N5 GNSS receiver replacing PS2 GPS RECEIVER usb BU353 S4 gps receiver windows 10 Company Information1.Rapid response on any inquiry.2.Competitive price.3.Professional inspection department to guarantee quality.4.Good after-sales service and fast delivery.Dear friend,If you need more details,Welcome to be touch with us at any time.
