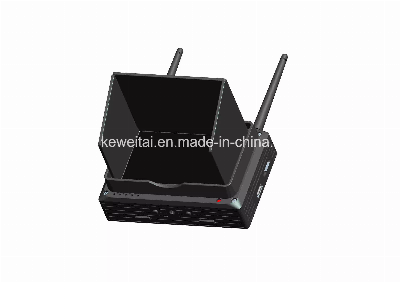

Cofdm HD Handheld Portable Receiver

Functions and Features: COFDM modulation; H.264 video compression; QPSK, 16QAM and 64QAM modulation optional; Full HD video quality 1080i/P; HDMI and HD-SDI video output; built-in battery for portable operation; diversity receiving technology to improve the performance;   Power Supply                                                                                                Working current≤1.3A@DC7.4Charging current≤1.5A@CC-CVInput voltageDC8.4VVideo Transmission                                                                                  Input frequency range250MHz~860MHz (4/6/7/8M)250MHz~700MHz (2M)RF bandwidth2/4/6/7/8MHzInput level-102dBm~-20dBmReceiving sensitivity≤-95dBm@8M (with low noise amplifier)ModulationCOFDMConstellation demodulationQPSK, 16 QAM, 64 QAMFEC1/2, 2/3, 3/4, 5/6, 7/8Carrier mode2KGUI1/4, 1/8, 1/16, 1/32Video resolution1920×1080×60i/50i (MAX)Video decodingISO/IEC13818-2 MPEG-2 MP@ML or H.264Video outputHDMI A Type 1.3Video recording & playbackTF CARD Receiving antennaSMA@50Ω (low noise amplifier optional)Antenna feed5V@300mAPower interfaceDCφ5mm/2.1mm charge jackMonitor                                                                                                Monitor size5-inch (foldable lens hood)Monitor brightness500cd/m^2Environment                                                                                                           Environment temperature_25ºC~+45ºCAppearance                                                                                                    Weight480g (without antennas)Dimension145mmX94mmX35mm (bare) /145mmX94mmX50mm (with lens hood)Battery                                                                                                   Battery capacity3400mAh@7.4VWorking time>2h@25 ºC/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
