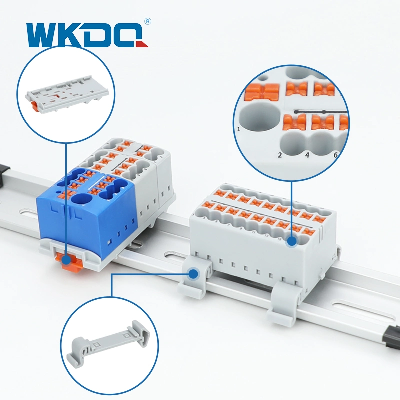

Jptfix18X2.5 PT Fix Push in Connection Labled Distribution Blocks

  Din Rail  Push In Connection Distribution Block1. DESCRIPTION: Tool free push-in direct connection technology, force saving up to 50%. The ready-to-connect blocks support fast mounting without manual bridging, time saving up to 80% .  Made from engineering flame retardants nylon PA66,copper conductor, stainless steel pressure spring.The Push-in connection terminal blocks are characterized by easy and tool-free wiring of conductors with ferrules or solid conductors.The compact design and front connection enable wiring in a confined space.The PTFIX Series Distribution Blocks are available in 2, 4, 6, 12 and 18-position models, as well as a variant with an additional large hole, can meet different specific wiring requirements.6 flexible installations for ready-to-use installation with complete accessoriesCan be bridged with one another via the conductor shaftTechnical ParametersModel No.JPTFIX18X2.5Color Grey, Blue, other color can be customizedLength/Height/Wide (mm)L28.6/H21.8/W47mmConnection methodPush-in connectionMaterialFlame resistant Nylon PA66, Tin plated brass conductorRated Voltage/Current690V/24ACross section, solid/soft Cable0.14-4mm²/0.14-2.5mm²Conductor Size24-12 AWGMounting TypeDIN Rail NS 35StandardIEC 60947-7-1LOGOWKDQ,  LOGO can be customizedCertificationCE/RoHS/CQC/ISO 9001FAQQ1 : Are you manufacturer ?   We are factory specializing in Terminal Blocks, Fans Filters Since 1999.Q2: Can you make customized products or packing?   Of course, our R&D Depart. have rich experience in OEM, ODM service.  Package can be customized as demanded.Q3:What about your MOQ?    We keep large stocks for standard product with Fast Delivery, no MOQ required.Q4: Do you have any test certification?   Products approved by CE, RoHs, etc.  Our factory passed by SGS and CQC ISO9001 Qualification.Q5: How about the after-sale service? What's the warranty terms?    If you have any problems after sales, we'll bring out solution within 24 hours. Quality warranty is 1 year, for problems happened over 1 year, we can also assist to solve. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
