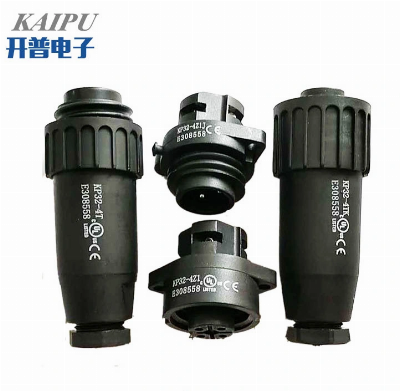

Circular Water Proof Connectors (KP32 Series)

KP32 series circular connectors made of plastic shell, It can be useed in the water-proof place. It have new type contacts - schrauben contacts. These connectors have the features of lower contact resistance, anti-libration, shock proof, water proof etc. They are widely used for the electrical connection between electrical equipment. It has protection IP67, It can be interchanged with Binder's series 693, Anti-fire: UL 94 V-0. UL file E308558. Product Ordering KP 32 - 4 T - 8 1    2    3  4   5 1. Name of series: KP 2. Design No.: 32 3. Number of contacts: 2,3,4 4. T: Plug with pins, Z1: Receptacle with sockets, ZM: Receptacle with M25X1.5 mouting, ZP: Cable receptacle with sockets. 5. Wire gauge: 3.5,6,7, 8, 9,10,11,12 TemperatureRelative humidityAtmosphereVibrationShock-40°C~+100°C(90~96)% at40°C101Kpa~6.67Pa50~500Hz,100m/s²200m/s²CurrentVoltageContact resistanceEndurance16A400VAC≤5mΩ500cycles12A600VAC         EnvironmentVoltage proofInsulation resistanceNormal2500V≥5000MΩ3.Technical  characteristics  TemperatureRelative humidityAtmosphereVibrationShock-40°C~+100°C(90~96)% at40°C101Kpa~6.67Pa50~500Hz,100m/s²200m/s²CurrentVoltageContact resistanceEndurance16A400VAC≤5mΩ500cycles12A600VAC         EnvironmentVoltage proofInsulation resistanceNormal4000V≥5000MΩ  4.DimensionsPlug with pins + M25X1.5 Receptacle with socketsReceptacle with no screw: KP32-4Z1 5.materialPin contactHPb59-1 brass Socket contactHPb59-1 brassContact & screw platingAg(Silver)Ring nutPA 66 UL 94 V-0Male insertPA 66 UL 94 V-0Cable clampPA66 UL 94 V-0M25X1.5 Receptacle PBT UL 94 V-0Contacts screwSteel plate nickelHousing cable connectorPA 66 UL 94 V-0Seal rubber &O ringButadience-acryRubberPress screwNylon 66Cable clipper H62 brass    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
