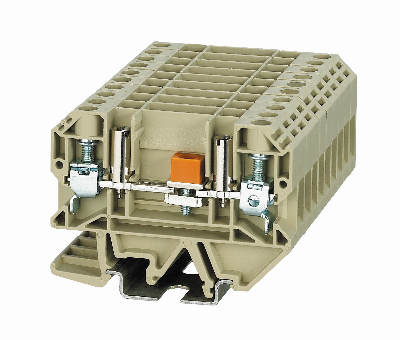

DIN Rail Test Disconnect Terminal Block 6mm

SEK Series Screw Terminal Block        The SEK series of frame-type screw terminal blocks is a new product which is developed based on the design thought of safety, reliability, practicability and advancement by SIPUN, according to the needs of the market. Its designs conform to the standard of IEC60947-7-1, IEC60947-7-2, GB14048.7, GB14048.1 and JB/9659.1.        This product is the same with ac 50Hz, and the maximum nominal voltage is 1000V at most.        It is widely used in modern power system, and the rated cross-section is 0.5mm-150mm. Used for round copper wire with or without special processing at the end connection.Model Name:SEK-6SW/L/H mm:8*66*48.5Rated Voltage (V):500Rated Current (A):41Single Strand Wire mm:0.5-10Stranded Conductor Wire mm:1.5-10Stranded Conductor Wire (With Tube) mm:0.5-6Stripping Length mm:12Material of Shell:PA66Material of Conductor:BrassInstall Rail:TH35-7.5 / TH35-15 / TH15-5.5 / G32Cover:SEK-6SGBridgeSEK-6L10MarkerZB3FAQQ: Are you trading company or manufacturer ?A: We are factory.Q: How long is your delivery time.A: Generally it is 2-3 days if the goods are in stock. or it is 7-20 days if the goods are not in stock, it is according to quantity.Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge but do not pay the cost of freight.Q: What is your terms of payment ?A: If we are the first time cooperation , 100% in advance.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
