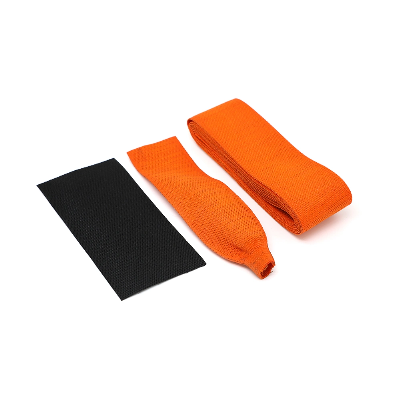

Factory Woven Heat Shrink Fabric Sleeve Shrink Tubing

Product DescriptionOperating temperature range (3000 hours): -40°C to 125°CMinimum recovery temperature: 100°C (recommended recovery temperature 110°C to 130°C)Maximum storage temperature: 60°CRecovered after heating2:1 shrink ratioFully recoverable fabric wall thickness: Approximately 1 mm .Longitudinal change on full recovery is -10% to -20%.PropertyTest condition(s)Performance* Abrasion resistance 200g load, 0.3mm radius metal blade, 10Hz, 10mm stroke, 144 000 cycles) 23ºC No wear to underlying rubber hose 80ºC No wear to underlying rubber hose 125ºC No wear to underlying rubber hose Thermal ageing 3000 hrs at 125°C No deterioration in abrasion resistance at80°C Low temperature flexibility 4 hours at -40°C, 10X diameter mandrel No cracking Cold impact 200g weight from 100mm at -40°C No cracking Thermal shock 100 cycles between -40°C and 125°C No deterioration in abrasion resistance at 80°C Fluid resistance Antifreeze (50% ethylene glycol) Engine oil (SAE 10w/30) Mineral hydraulic fluid Detergent (1% Teepol) Brake fluid (DOT 4) Unleaded gasoline Diesel fuel Battery acid (1.25 SG H2SO4) 24 hr immersion at 23°C No deterioration in abrasion resistance at 80°C   SizeFlat Width(mm)ID as suplied(mm)After shrinked(mm) Φ6.0/3.0 12±2 >=6.0 ≤3.0 Φ8.0/4.0 16±2 >=8.0 ≤4.0 Φ10.0/5.0 20±2 >=10 ≤5.0 Φ12.0/6.0 24±3 >=12 ≤6.0 Φ14.0/7.0 27±3 >=14 ≤7.0 Φ16.0/8.0 29±3 >=16 ≤8.0 Φ20.0/10.0 36±3 >=20 ≤10.0 Φ25.0/12.5 44±3 >=25 ≤12.5 Φ30.0/15.0 53±4 >=30 ≤15.0 Φ35.0/17.5 60±4 >=35 ≤17.5 Φ40.0/20.0 68±4 >=40 ≤20.0 Φ45.0/22.5 76±4 >=45 ≤22.5 Φ50.0/25.0 85±5 >=50 ≤25.0 Φ60.0/30.0 100±5 >=60 ≤30.0 Φ65.0/32.5 107±5 >=65 ≤32.5 Φ70.0/35.0 116±5 >=70 ≤35.0 Φ80.0/40.0 132±5 >=80 ≤40.0 Φ90.0/45.0 145±5 >=90 ≤45.0   Certifications  Packaging & Shipping Company ProfileShanghai Wellco International Limited is a professional Team with 18years experience for R & D, production, sales of special heat shrink Tube and other radiation crosslinking materials manufacturers. We concentrate on to providing all kinds of products and solution for Insulation,Connection,Waterproof, high temperature ,Chemical resistant ,EMI and mechanical protection for the wire and cable .The company has strong technical force with 20 years experience and advanced production equipment. We can supply (such as modified PE, PVDF, FEP, EPDM, Silicone, FKM, FEP, PTFE Etc materials)heat shrink tube and insulation tube. The products are widely used in the fields of electronic communication, automobile, high-speed rail, electric motor, aviation, medical and other fields, such as insulation, water-proof, electrostatic shielding, oil-resistant, chemical and high-temperature resistant Protection, etc. Our products have passed UL certification ,RoHS ,REACH.We also can produce customized products or develop products with special requirements according to customer requirements, and we carry out our production according to ISO9001 and IATF16949 quality management system standards to ensure the stability and reliability of product quality.  FAQ1. who are we?We are based in Shanghai, China, start from 2017,sell to North America(20.00%),South Asia(20.00%),Southeast Asia(15.00%),Western Europe(15.00%),South America(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Northern Europe(5.00%),Eastern Asia(3.00%),Domestic Market(3.00%),Southern Europe(2.00%),Africa(00.00%),Central America(00.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Heat Shrink Tube/Heat Shrink Mould Part/Marking Sleeve/Cold Shrink Tube4. why should you buy from us not from other suppliers?Shanghai Wellco International Limited is a professional R & D, production, sales of special heat shrink Tube and other radiation crosslinking insulation materials manufacturers And the founder have the experience for the insulation more than 20years5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,DDU,Express Delivery;Accepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union;Language Spoken:English,Chinese, Japanese/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
