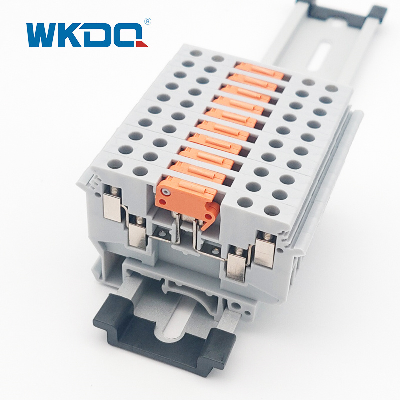

Low Voltage Double Level Terminal Block Screw Connection1. DESCRIPTION: The internationally recognized screw connection meets the most stringent requirements and covers a wide area of application. For the most stringent requirements: the screw connection has also proven itself in the wiring of large conductor cross sections. The JUK universal screw terminal block series has the typical features which are decisive for practical applications.Made from engineering flaming resistant nylon PA66 with brass conductor.With universal foot which can be installed on Din Rail NS 35.It can connect two conductors with ease, even large conductor cross sections are not a problem.Electric potential distribution can use fixed bridges in the terminal center or insertion bridges in the clamping space.Multi levels terminal blocks allow you to increase wiring density-even when space is limited, fixed bridge and test sockets can be used on both levels. Space saving thanks to compact design; Clear arrangement thanks to marking all of terminal points.All types of accessories: End cover, End Stopper, Partition plate,Separating plate, Marker strip, Fixed bridge, Insertion bridge, etc.Technical ParametersModel No.JUDK4-MTKColor Grey,Blue, other color can be customizedLength/Height/Wide (mm)64/46.2/6.2Connection methodScrew connectionMaterialFlame resistant Nylon PA66 V0 Rated Voltage/Current690V/16ACross section, solid/soft Cable0.2- 4mm²Conductor Size24-12AWGMounting TypeDIN Rail NS 35StandardIEC 60947-7-1LOGOWKDQ, LOGO can be customizedCertificationCE/RoHS/CQC/ISO 9001FAQQ1 : Are you manufacturer ? We are factory specializing in Terminal Blocks, Fans Filters Since 1999.Q2: Can you make customized products or packing? Of course, our R&D Depart. have rich experience in OEM, ODM service. Package can be customized as demanded.Q3:What about your MOQ? We keep large stocks for standard product with Fast Delivery, no MOQ required.Q4: Do you have any test certification? Products approved by CE, RoHs, etc. Our factory passed by SGS and CQC ISO9001 Qualification.Q5: How about the after-sale service? What's the warranty terms? If you have any problems after sales, we'll bring out solution within 24 hours. Quality warranty is 1 year, for problems happened over 1 year, we can also assist to solve. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
