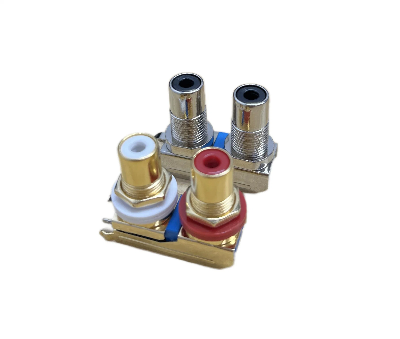

RCA02 Dual Unit RCA Connector Audio Jacks Sockets RCA Video

1.Electrical characteristics:Rating:30V/DC.1.0AContact resistance:30mΩ MaxInsulation resistance:100mΩ MinDielectric withtanding voltage:500V AC RMS After 1 Minute2.Mechanical characteristics:Insertion force:30N MaxWithdrawal force:8N MinWithdraw force for center contact:5N Min  (Use a 0D=3.2±0.05mm,Length=14±0.20mm gauge plug) The terminal shall be capable of with standing a force of 30N applied in pulled direction for  5   seconds.Without loosing and breakdown,but deformation of terminal is accepted) 3.Life test:15000 Cycles Min4.Environmental:  4-1.Temperature range:-40ºC to +70ºC  4-2.Salt spray:24H5.Packing:  5-1.Reel packing:Tray packing.6.Part must comply Rohs specification.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
