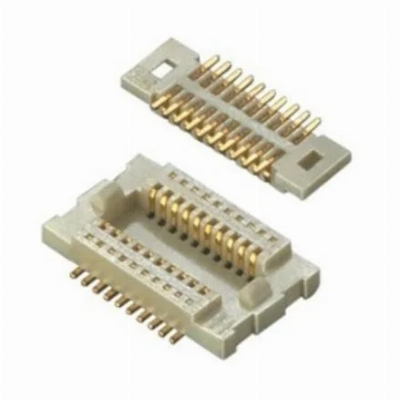

Panasonic 0.5mm Pitch Board to Board Plug Receptacle Connector

PANASONIC 0.5mm pitch board to board Plug Receptacle connectorQuick Detail:  NamePANASONIC  board to board ApplicationSignal, Board-to-Board, PCBConnectorReceptacle and PlugCircuits/poles/pins21,31,41,51Pitch0.5mmCertificateROHS, UL,HFSpecifications:  Specifications:Male headerPlug PANASONIC AXK5F22547YGFemale headerReceptacle PANASONIC AXK5F26347YGConnector typeBoard mounting, SMTPitch Centerline0.5mmCircuits/poles/pins21,31,41,51,80Number of RowsDual/doubleCurrent rating1A AC,DCVoltage rating50V,AC,DCPinTin plated, gold platedFeature:Cantilever-type gold contacts    Long-term mating reliability Metal friction lock    Secure mating retention LCP housing material    Withstands high-temperature SMT soldering processes Embossed tape packaging    Automated pick and place Shrouded plugs and receptacles    Double wall strength for resistance to shock and vibration Wide-angled mating surfaces    Minimizes risk of damage during mating Shroud ramp/window locks and contact-to-plastic locks    Extra retention between plug and receptacle   Applications:Medical: Patient monitor, surgical equipment and devices,Telehealth - remote patient monitoring systems Data / Communication: Notebook, computerConsumer: Cell phone, Mobile devices, Digital camera, digital media players, digital video camera, DVD players, recorders, lap tops, Video, DVD products, PDAS, camcorders, portable navigation device, servers, Edge lit Led blu Tvs, backlight, LCD panels,LED 3D TVs, LED TVs, tracking lightingAutomotive: GPSNetworking: Networking equipment, Router, SwitchTelecommunications: Routers, serversEshine offers quality equivalent to major brands for components including Hirose HRS, Harwin, Tyco, Molex, Digi-key, JST, Wurth, FCI ect Many well-known manufacturers, Eshine have Many products are EX-Stock or 1~2 weeks, with a low MOQ of just 1000pcs.If you can't find the part number here, please contact us or send your drawing or part number.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
