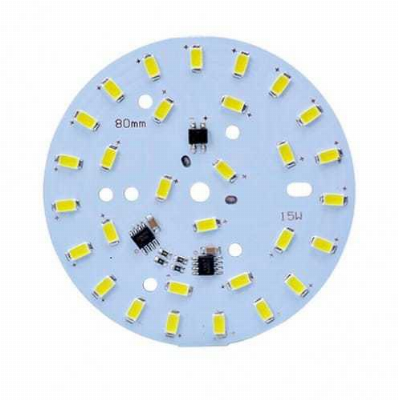

High Quality PCB for LED Lighting/Aluminum PCB

Technical CapabilitiesItemsSpeci.RemarkMax panel size32" x 20.5"(800mm x 520mm) Max. Board size2000×610mm Min. board Thickness2-layer 0.15mm 4-layer 0.4mm 6-layer 0.6mm 8-layer 1.5mm 10-layer 1.6~2.0mm Min. line Width/Space0.1mm(4mil) Max. Copper thickness10OZ Min. S/M Pitch0.1mm(4mil) Min. hole size0.2mm(8mil) Hole dia. Tolerance (PTH)±0.05mm(2mil) Hole dia. Tolerance,+0/-0.05mm(2mil) Hole position deviation±0.05mm(2mil) Outline tolerance±0.10mm(4mil) Twist & Bent0.75% Insulation Resistance>10 12 Ω Normal Electric strength>1.3kv/mm S/M abrasion>6H Thermal stress288°C 10Sec Test Voltage50-300V Min. blind/buried via0.15mm (6mil) Surface FinishedHASL, ENIG, ImAg, Imsn OSP, Plating AG, Plating gold MaterialsFR4,H-TG,Teflon,Rogers,Ceramics,Aluminium, Copper base Min trace width/ space (inner layer)4mil/4mil(0.1mm/0.1mm) Min PAD (inner layer)5 mil(0.13mm)hole ring widthMin thickness(inner layer)4 mil(0.1mm)without copperInner copper thickness1~4 oz Outer copper thickness0.5~6 oz Finished board thickness0.4-3.2 mm Board thickness tolerance control±0.10 mm±0.10 mm1~4 L±10%±10%6~8 L±10%±10%≥10 LInner layer treatmentbrown oxidation Layer count Capability1-30 LAYER alignment between ML±2mil Min drilling0.15 mm Min finished hole0.1 mm High quality PCB for LED Lighting/Aluminum PCB 1. PCB layer: 1-12 layers 2. PCB Certificate: ISO UL REACH and RoHS 3. FR-4 Material 4. Best price with excellent after-service 5. Reputable manufacturer Hello, are you still looking for some manufactory to test your PCB circuit design? We offer 3-6 workdays delivery time for make protoypes. 1. We have 10 years experience in circuit board, Printed Circuit Board field to serve your needs. 2. Competitive circuit board, Printed Circuit Board price with high quality. 3. Excellent service and prompt delivery 4. Our circuit board, Printed Circuit Board get ISO and UL Certificates and meet RoHS REACH standard 5. You can contact us at any time, we are 24-hour service for you! NOItemTechnical capabilities1Layers1-12 layers2Max. Board size2000×610mm3Min. board Thickness2-layer  0.25mm4-layer  0.6mm6-layer  0.8mm8-layer  1.5mm10-layer  1.6~2.0mm4Min. line Width/Space0.15mm(4-5mil)5Max. Copper thickness10OZ6Min. S/M Pitch0.15mm(4-5mil)7Min. hole size0.2mm(8mil)8Hole dia. Tolerance (PTH)±0.05mm(2mil)9Hole dia. Tolerance (NPTH)+0/-0.05mm(2mil)10Hole position deviation±0.05mm(2mil)11Outline tolerance±0.10mm(4mil)12Twist & Bent0.75%13Insulation Resistance>10 12 Ω Normal14Electric strength>1.3kv/mm15S/M abrasion>6H16Thermal stress288°C10Sec17Test Voltage50-300V18Min. blind/buried via0.2mm  (8mil)19Surface FinishedHAL, ENIG, ImAg, Imsn OSP, Plating AG, Plating gold20MaterialsFR4,H-TG,Teflon,Rogers,Ceramics,Aluminium, Copper base/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
