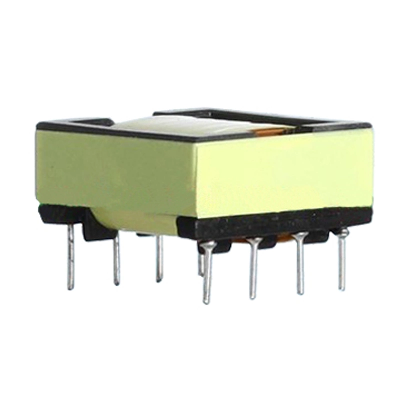

EFD20 SMD Transformer LED Driving Transformer PCB EFD10 EFD12 EFD15 EFD20 EFD25 EFD30 SMD transformerCore typeVe(mm3)Ae(mm2)Mass(g) EFD10/5/31717.20.45 EFD12/6/3.532511.40.9 EFD15/8/551015.01.4 EFD20/10/7146031.03.5 EFD25/13/9330058.08 EFD30/15/9470069.012 Features:1. High magnetic flux;2. Low loss magnetic materials;3. Low leakage inductance;4. High efficiency;5. High frequency6. Strong anti-interference;Applications:1. PCB circuits;2. Computer & TV;3. Monitor & scanner;4. Fax machines, PBX;5. Welder welding machine;6. Duplicator, mobile adapters;7. Printer and other equipments and instruments.Various types of transformers available, EI, UI, EFD, EP, ER, EPC, POT, RM, EEHigh Frequency transformer suitable for EL/CCFL Inverter or DC/DC converterCustomer's designs are welcome Model NumberSpecificationNeedle Number RatioLength×Width×HeightEE8.3Vertical2/38.3×5.4×5.4EE10Vertical2/310×8×8EE13Vertical2/313×12×12EE13Horizontal2/213×12×12EE16Vertical4/616×13×15EE16Horizontal3/316×13×15EE19Vertical3/419×16.5×16.5EE19Vertical5/519×16.5×16.5EE19Horizontal4/419×16.5×16.5EE22Vertical5/522×16×19EE25Vertical2/225.5×17×21EE25Horizontal4/425.5×17×21EE28Vertical6/628×22×20.5EE 30Horizontal5/530×25×22EE 30Vertical6/630×25×22EE 33Vertical7/733×27×25EC28Vertical6/628×22×20.5EC28Horizontal6/628×22×20.5EC42Vertical7/742×30×44EC35Horizontal7/735×28×27UF9.8Horizontal2/216×11×16UF10.5Horizontal2/218.5×17×21.5UF16Horizontal2/222×19×27O-type15×8.5×6-9×17O-type36×23×115-45×28.5×43O-type40×24×14.5-45×24×47Any custom-design is available Structure DescriptionRelated productsWorkshopOur Advantages:1. 20 years experience in transformer and inductor manufacturing2. Scientific management system, strong technical team, and strict quality control system3. RoHS,CE,TUV and UL Standard4. OEM & ODM5. Competitive price,in time delivery and perfect after-service online.FAQQ1. Are you professional supplier in China? Yes, we have over 20 years experience in supplying transformers and inductors.Q2. What is your MOQ? Our usual MOQ is 1000pcs.Q3. Can I place a sample order? Yes, please kindly contact us for more details.Q4. What's the delivery time for samples? Usually 5 - 10 working days.Q5. What's the lead time for mass production? Normally 15-30 working days, based on your order quantity.Q6. What's the payment term? We accept T/T, L/C, Western Union and Paypal etc.Q7. Can you make customized products? Yes, of course. We will do as per customer's design.Q8. Is OEM accepted? Yes, welcome OEM project. Q9. Is it ok to print my logo on the label? No problem, we can make it as per your requirements. Q10. Can your factory print our brand on the product? Yes, we can add customer's logo/brand on the product with the authorization from customers./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
