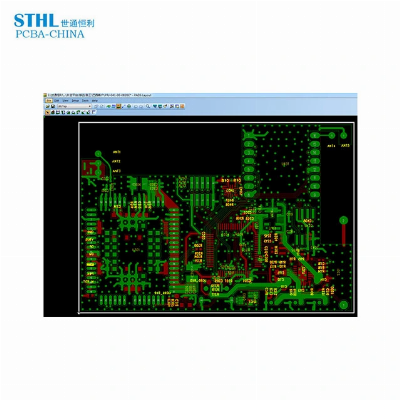

Professional Circuit Board PCBA Assembly Schematic PCB Layout Design

Factory Price Custom Fr-4 Circuit Board PCBA PCB AssemblyWHY CHOOSE STHL PCB AssemblyCOMPANY PROFILESProducts CapabilityItemsPCB capacityProduct nameFactory Price Custom Fr-4 Circuit Board PCBA PCB AssemblyMaterialFR-4; High TG FR-4; Aluminum; CEM-1; CEM-3; Rogers, etcPCB typeRigid, flexible, rigid-flexibleLayer NO.1, 2, 4, 6, up to 24 layerShapeRectangular, round, slots, cutouts, complex, irregularMax PCB dimensions1200mm*600mmBoard Thickness0.2mm-4mmThickness Tolerance±10%Min Hole Size0.1mm (4 mil)Copper Thickness0.5 OZ-6OZ (18 um-770 um)Copper Plating hole18um-30umMin Trace Width0.075mm (3mil)Min Space Width 0.1mm (4 mil)Surface finishHASL, LF HASL, Imm Gold, Imm Silver, OSP etcSolder mask Green, red, white, yellow, blue, black, orange, purp  ItemsPCBA PCB Assembly capacityProduct nameFactory Price Custom Fr-4 Circuit Board PCBA PCB AssemblyAssembly detailsSMT and Thru-hole, ISO SMT and DIP linesTesting on productsTesting jig/mold , X-ray Inspection, AOI Test, Functional testQuantityMin quantity : 1pcs. Prototype, small order, mass order, all OKFiles neededPCB : Gerber files(CAM, PCB, PCBDOC)Components : Bill of Materials(BOM list)Assembly : Pick-N-Place filePCB Panel SizeMin size : 0.25*0.25 inches(6*6mm)Max size : 1200*600mmComponents detailsPassive Down to 0201 sizeBGA and VFBGALeadless Chip Carriers/CSPDouble-sided SMT AssemblyFine BGA Pitch to 0.2mm(8mil)BGA Repair and ReballPart Removal and ReplacementComponent packageCut Tape, Tube, Reels, Loose PartsPCB+ assembly processDrilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & HumidityPCB ShowcasePCB Assembly ShowcaseDust-free workshop with 6 SMT PCB Assembly lines, 2 DIP lines, 2 finished prouducts assembly linesQuality departmentQuality and Policy :1.Continually improve our quality, efficiency, service to satisfy thecustomer's requirement.Quality Specifications:Quality System:1. ISO-9001:2018 Quality System Standard2. Quality Standard: IPC-610-D class 2,3. Soldering Standard: J-STD-001 class 1,2,34. ESD Standard: ESD-MIL-STD-16865. Workshop management:5S6. FAI-first article inspection7. In process visual inspection8. AOI inspection9. Machine calibration and preventative maintenance10. ERP material and process management ( ERP=enterprise resource planning computer system)Quality standardsIPC-A-610D-GRoHS managementProduct compliant: RoHSRoHS prohibited substances list :NO. Name The upper limit(ppm=mg/kg)1 Pb 0.1%(1000ppm)2 Hg 0.1%(1000ppm)3 Cd 0.001%(100ppm)4 Cr VI+ 0.1%(1000ppm)5 PBB 0.1%(1000ppm)6 PBDE 0.1%(1000ppm)Testing and maintenance departmentSTHL provide custom test service according to client's requirements and products. Usually STHL PCBA Tech offers a full range of testing service. Including: *AOI(Automatic Optical Inspection)* Function Testing* In Circuit Testing* Testing Jig* Testing Service* X-Ray for BGA Testing* Printing Solder Paste TestEach board is carefully examined by our dedicated inspection team using AOI and high magnification viewers.Using our X-Ray machine, we test PCBs to component level and all wiring is fully inspected and tested. Flashtesting and earth bonding tests can also be undertaken where required.Warehouse departmentEquipments showcaseCERTIFICATIONShenzhen STHL Technology Co.,Ltd,is a combined company with 200 employees; it was established in 2006located in 2nd Floor, B4 building, Anle Industrial zone, Hangcheng Av. , Gushu ,Xixiang Town,Bao'an District ,Shenzhen ,Guangdong , 518126 China. ,the company occupies an area of 2000 square meters ,Shenzhen STHLtechnology Co.,Ltd has passed ISO9001:2008 Certification in 2012 , and pased ISO9001:2015 Certification in2018. They have successful foreign trading experience in Europe , North America and South America.Packing and Shipping1.High quality shockproof packaging. Inside: Red or white blister+card board; Outside:carton.2.Depends on Customer's require, STHL offfer economical fast forwarder.FAQQ1.What is needed for quotation?A: PCB : Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)PCBA: PCB information, BOM, (Testing documents...)Q2. What file formats do you accept for production?A: Gerber file: CAM350 RS274XPCB file: Protel 99SE, P-CAD 2001 PCBBOM: Excel (PDF,word,txt)Q3. Are my files safe?A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.Q4. MOQ?A: There is no MOQ in STHL PCB Assembly. We are able to handle Small as well as large volume production with flexibility.Q5.Shipping cost?A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.Q6. Do you accept process materials supplied by clients?A Yes, we can provide component
