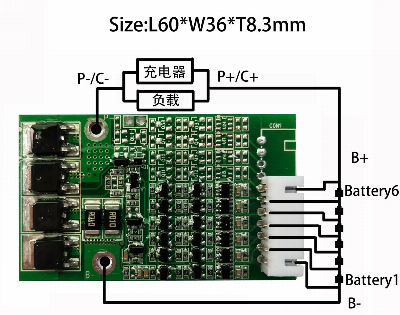

Custom LiFePO4/Lithium Ion PCB 6s-10s 10A 15A

Product description:BMS 6S 5A 10A/15A li ion Lipo Lifepo4 battery pcm for battey packAbout the battery BMSFunction: Detect and protect the battery from over-charge  ,over-dicharge, over-current short-circuit ,temperature detecting protection  and auotmatically voltage balance function .with high end electronic components (High End IC and MOSFET ) ,simple structure design will let it have more stable quality working performance , Flexible application ( it can be used for less series battery by leaving some connection pins at empty status ),full set of protection measures let it works well without any infulence from external unexpected accidents.About your products,just tell us the relative voltage/ cells/ current A or equipment etc,we will help to recomment the most suitable products for you. or we design for you!Product specification  PCM Specifications  For (6S)  19.2V lifepo4 Battery PacksLWS-10S15A-170(6S)No.Test   itemCriterionlifepo41VoltageCharging voltageDC:21.6V   CC/CVBalance voltage for single cell/ CurrentBalance current for single cell/Current consumption ≤20μAMaximal continuous charging current5AMaximal continuous Discharging current30A3Over charge ProtectionOver charge detection voltage for single cell3.9±0.025VOver charge detection delay time0.5S-2SOver charge release voltage for single cell3.8±0.05V4Over discharge protectionOver discharge detection voltage for single cell2.0±0.08VOver discharge detection delay time10mS-150mSOver discharge release voltage for single cell2.5±0.1V5Over current protectionOver current detection voltage0.1±0.025VOver current detection current50±20ADetection delay time  5ms-15msRelease conditioncut load and recharge6Short protectionDetection conditionExterior short circuitDetection delay time15-20usRelease conditioncut load and recharge7ResistanceProtection  circuitry(MOSFET)≤20mΩ8TemperatureOperating Temperature Range-40~+65ºCStorage Temperature Range-40~+125ºCPacking and shippingCertficationsFactory FAQQ: How do I judge what material my battery is ?A: Please take a look at the battery body.if the normal voltage of your battery shows as 3.2V,the battery will beLiFePo4.If the normal voltage of your battery shows as 3.6V or 3.7V, the battery will be Li-ion or Li-polymer battery. you can also ask battery manufacturer the material of battery.Q: Can I use this protection circuit board for my battery?A: Can use this protection circuit board, or not?There are 2 questions:How much cells in series is your battery pack?The protection circuit board you need to buy must be same cells in series as your battery pack.What material is your battery?Only the LiFePo4 battery has different electric parameter from other battery, so if you need buy the protection circuit board for LiFePo4 battery , Please let us know firstly.Q: Do we need cell balance or not?A: The function of balance : Since battery is made of many pcs of cells in parallel and in series, the cells can't bethe same as no two people in the world is the same , so can only put in group with similar performance is notconsistent , which will lead to each cell voltage is not consistent as well after the completion of the charging ifwithout balance functionQ: Do you have Minimum Order Requirement (MOQ)?A: No, We don't have MOQ, Different customer have different requirement ,We can provide various capacity and size as per your requirements,Also ODM / OEM is welcome.Q: What is your term of payment?A: PayPal, T/T, L/C,Western UnionMore question can contact :May Liu : Mob: +86 15225686625     Tel:0755-29407599    Fax:0755-29407499Web: http://lws-pcm.en.made-in-china.com /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
