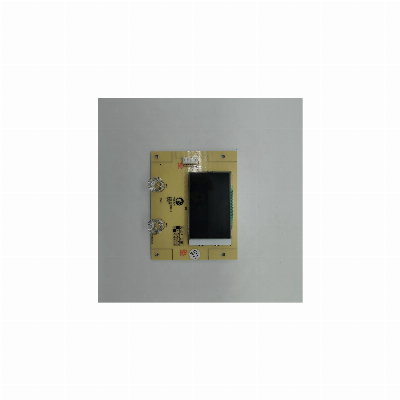

Precision Ice Maker Appliances PCBA Control Boards PCB Board Printed Circuit

Product DescriptionProduct ParametersMax panel size32" x 20.5"(800mm x 520mm)Min trace width/ space (inner layer)4mil/4mil(0.1mm/0.1mm)Min PAD (inner layer)5 mil(0.13mm)Min thickness(inner layer)4 mil(0.1mm)Inner copper thickness1~4 ozOuter copper thickness0.5~6 ozFinished board thickness0.4-3.2 mmBoard thickness tolerance control±0.10 mm±0.10 mm±10%±10%±10%±10%Inner layer treatmentbrown oxidationLayer count Capability1-30 LAYERalignment between ML±2milMin drilling0.15 mmMin finished hole0.1 mmHole precision±2 mil(±50 um)tolerance for Slot±3 mil(±75 um)tolerance for PTH±3 mil(±75um)tolerance for NPTH±2mil(±50um)Max Aspect Ratio for PTH8:1Hole wall copper thickness15-50umAlignment of outer layers4mil/4milMin trace width/space for outer layer4mil/4milTolerance of Etching+/-10%Thickness of solder maskon trace0.4-1.2mil(10-30um)at trace corner≥0.2mil(5um)On base material≤+1.2milFinished thicknessHardness of solder mask6HAlignment of solder mask film±2mil(+/-50um)Min width of solder mask bridge4mil(100um)Max hole with solder plug0.5mmSurface finishHAL (Lead or Lead free), immersion Gold, Immersion Nickel, Electric Gold finger, Electric Gold, OSP, Immersion Silver.Max Nickel thickness for Gold finger280u"(7um)Max gold thickness for Gold finger30u"(0.75um)Nickel thickness in Immersion Gold120u"/240u"(3um/6um)Gold thickness in Immersion Gold2u"/6u"(0.05um/0.15um)Impedance control and its tolerance50±10%,75±10%,100±10% 110±10%Trace Anti-stripped strength≥61B/in(≥107g/mm)bow and twist0.75%  Production process   Company Profile   Ningbo Hometech Technoloy Co,Ltd Established in 2009, is a professional manufacturing enterprise majoring in high end and multi-layer Printed Circuit Board.      Along with more than 10 years′ development, we have settled in Ningbo city, covering facility area 8000 Square meters, with more than 200 employees, among them, 150 with highly professional who are no less than 10 years expert in PCB field.      Our main products range from Multilayer PCB, High frequency PCB, Metal base PCB, Hi-Tg heavy copper foil PCB and Mixed Dielectric base PCB, HDI, rigid-flex PCB, and many other customized PCB with special performance which are widely used in Communication, power supply, computer, consumer electronics, industrial control, medical device, high technology field and spread over America,South America, Europe and some Asia Districts, achieving their satisfication.      Under the mission " high quality, exact delivery, customers′ satisfactions, continuous development, Common innovation ", We believe Hometech will develop better and better with your participation.Exhibition Packaging & Shipping Certifications FAQQ1.What is needed for quotation?A: PCB : Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)PCBA: PCB information, BOM, (Testing documents...)Q2. What file formats do you accept for production?A: Gerber file: CAM350 RS274XPCB file: Protel 99SE, P-CAD 2001 PCBBOM: Excel (PDF,word,txt)Q3. Are my files safe?A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.Q4. MOQ?A: There is no MOQ in Hometech pcba.We are able to handle Small as well as large volume production with flexibility.Q5.Shipping cost?A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.Q6. Do you accept process materials supplied by clients?A Yes, we can provide component source, and we also accept component from client/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
