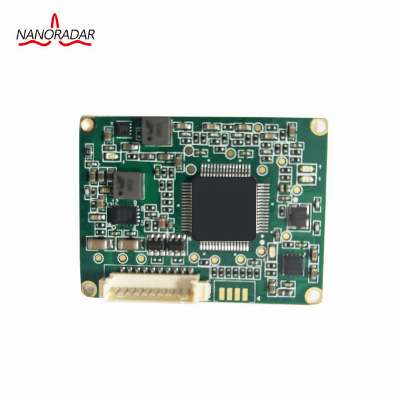

Integrated Circuit 24GHz Radar with Signal Process

   Hunan Nanoradar Science and Technology Co., Ltd is a subsidiary of Novasky, which is established in 2012 which is specialized in developing, producing and selling millimeter wave radar for security, UAV, Automotive, Smart Traffic and other industrial application, our radar sensor is covering 24GHz, 77GHz and 79GHz, we are successfully developed 10+ models MMV radar products which is mainly based on the MIMO system ray and cognitive radar technology.Nanoradar's radar sensor detect range is 30-450meters, the accuracy is up to 85% for security radar to identify human, our product is hot-selling in the United of American, Korea, The united of Kingdom, France etc. Nanoradar is a major MMV radar manufacture in China. Product Description SP25 is a K band Doppler Module, using a higher complexity of the FMCW modulation mode. It can detect the distance and velocity of moving objects with high accuracy. SP25 adopts one-way transmitting antenna and one way receiving antenna, and the transmitting and receiving antenna is separated. Therefore, the radar transmitting and receiving link has a higher isolation. Besides, the radio frequency MMIC is coplanar with the antenna, which can reduce the loss of radio frequency link. The low side lobe synthesis of the antenna pattern by using Taylor algorithm has a better suppression ratio than that of -15dB side lobe, which makes that SP25 is not susceptible to the interference of ground moving targets, and can improve the radar detection performance. Product Parameters Measuring performance                                    to natural targets (non-reflector targets)Modulation FMCWDetection Range 0.10~30mResolutionspot target, none tracking0.75mAccuracyspot target, none tracking±0.10mFOV 100° Velocity Range ±70m/s(-leaving object, +approximation)Velocity Resolutionspot target, none tracking2.4m/sAntenna Channels 1TX/1RXCycle Time 50HzElevation beam-6dB38°Azimuth beam-6dB100°Operation ConditionsTransmit frequencyETSI&FCC24…24.2GHzTransmit capacityaverage/peak EIRP12dBmPower +4.0V~12VDCConsumption 0.5WWorking Temperature -40ºC…+85ºCStorage Temperature -40ºC…+90ºCProtection class IP66InterfaceInterface 1xUART--115200bit / sCoverDimensionW*L*H40*31*6mmWeight 4gProduct Features *Work in 24GHz-ISM-Band for the detection of moving objects*Compact size (40x31x6mm)*Low consumption*Beam aperture 100°/38°*12dBm EIRP output powerPopular Application * Distance-measurement and anti-collision for railway vehicles;* Distance-measurement and anti-collision for robots;* Distance-measurement and anti-collision for UAVs;* Distance-measurement and anti-collision for machineries;* Intelligent radar lighting-control system;    For Robotic Vehicles Distance Measurement   For Vehicle/Walkers Movement detection   For Mining Vehicle Blind Spot DetectionCertificationsOur ExhibitionsTest EquipmentAfter Sales Service/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
