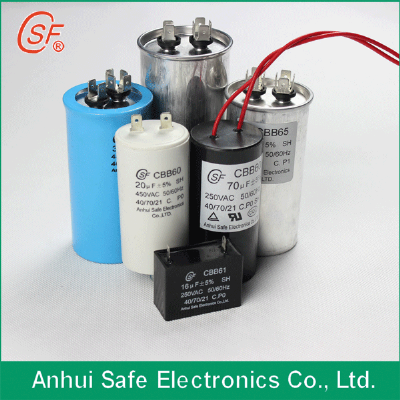

Air Conditioner Capacitor

Air Conditioner CapacitorOutline Drawing:Features:Widely applied to the starting and running of AC single-phase motors at 50Hz/60Hz frequency powerSelf-healing propertyGood stability and reliabilitySafer with Explosion-proofed designRound capacitor, can be provided oval capacitorSingle capacitor, can be provided double capacitorSpecifications: Reference standards  GB/T 3667.1( IEC60252-1) Climatic category 40 / 70 / 21,40 / 85 / 21 Class of operation Class B (10000h)    Class C (3000h) Class of safety protectionS2Voltage range    250VAC,370VAC,440VAC,450VAC Capacitance range2~100μF Capacitance tolerance     ± 5% , ± 10%,± 15% Dissipation factor20 x10-4 (100Hz,20°C)Test voltage terminal to terminal  UTT  2 Un for 2 secondsTest voltage terminal to case UTC  (2Un+1000)VAC or 2000VAC- 50Hz for 60 seconds Insulation Resistance  ≥3000s (100Hz,20°C,1min)Decription:CBB65 Motor Run Capacitors (Round-Shaped, Single Capacitance Value or daul Capacitance Value)CBB65 Motor Run Capacitors feature a low-loss, self-healing Metalized Polypropylene Film dielectric system, which are castor oil-filled.The motor run capacitors with Single capacitance value are offered in voltages ranging from 240 through 660 VAC and with Single capacitance range of 0.5 to 120 microfarads. The motor run capacitors are designed to operate in continuous duty over a broad temperature range from -40°C to +85°C with full rated 50/60 Hz. AC voltage applied. CBB65 motor run capacitors offer outstanding electrical characteristics, high capacitance stability over time and temperature, and very low internal power losses (Dissipation Factor). Case is aluminum round-shaped cans and standard terminations are 2*4  terminals. it also have 1*1pin,2*2pin,4*4pin,2*3*4pin or wire.CBB65 capacitor has advantages of small volume, light weight, low dissipation, high insulation resistance, good self-healing character, anti-striking current, strong over-carrying capacity, and steady electricity performance, and reliable safety with inner anti-explosion, etc.Application:Possible applications include; electric motor, pumps, air conditioning, compressor, lighting, and general purpose AC applications.Dimensions(mm)NO.production specificationsterminalsize1CBB65-450VAC 5μF ~9μF1*1 or 2*4 or 2*2 or 4*4φ40*602CBB65-450VAC-10μF1*1 or 2*4 or 2*2 or 4*4φ40*603CBB65-450VAC-12.5μF1*1 or 2*4 or 2*2 or 4*4φ40*704CBB65-450VAC-15μF1*1 or 2*4 or 2*2 or 4*4φ45*705CBB65-450VAC-20μF1*1 or 2*4 or 2*2 or 4*4φ50*756CBB65-450VAC-25μF1*1 or 2*4 or 2*2 or 4*4φ50*857CBB65-450VAC-30μF1*1 or 2*4 or 2*2 or 4*4φ50*1008CBB65-450VAC-35μF1*1 or 2*4 or 2*2 or 4*4φ50*1009CBB65-450VAC-40μF1*1 or 2*4 or 2*2 or 4*4φ50*10010CBB65-450VAC-45μF1*1 or 2*4 or 2*2 or 4*4φ50*10011CBB65-450VAC-50μF1*1 or 2*4 or 2*2 or 4*4φ50*12512CBB65-450VAC-55μF1*1 or 2*4 or 2*2 or 4*4φ50*12513CBB65-450VAC-60μF1*1 or 2*4 or 2*2 or 4*4φ50*12514CBB65-450VAC-65μF1*1 or 2*4 or 2*2 or 4*4φ55*12515CBB65-450VAC-70μF1*1 or 2*4 or 2*2 or 4*4φ55*12516CBB65-450VAC-80μF1*1 or 2*4 or 2*2 or 4*4φ60*12517CBB65-450VAC-90μF1*1 or 2*4 or 2*2 or 4*4φ60*12518CBB65-450VAC-100μF1*1 or 2*4 or 2*2 or 4*4φ63.5*125Note: Other specifications and size,terminal outside table are negotiable.For more types CBB65 motor run capacitor:Capacitors producing pictures:Capacitor Factory more types goods:Factory:  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
