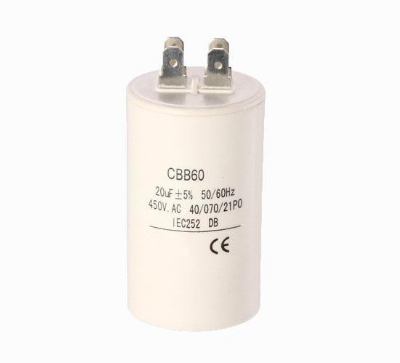

White Aluminium Air Conditioner Part Motor Run Capacitor (Cbb60)

CBB60 Series AC Motor Capacitor Product Description: The capacitor takes heavy-edge metallized Al/Zn PP film or web-like fuse film as dielectric. CBB60 series motor run capacitor has features of small size, light weight, small tangent in waste angle, and good self-concrescence. Applicable to startand operation with 50/60Hz. A. C single motor, specially suit for micro pump, baric pump, micro motor and so on. Applications Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for washers and high efficiency compressors of refrigerators etc. Technical Specifications Climate type: 40/70/21 Capacitance tolerance: ± 5% Insulation Resistance: ≥ 3000S· µ F I. R Dielectric dissipation factor: Tgδ ≤ 0.002 (50Hz~100Hz) Application requirements: Altitude: ≤ 2000m Residual voltage in application: Less than 10% of rated voltage. Allowed maximum voltage: Less than 1.1 times of rated voltage Permissible maximum current: Less than 1.3 times of rated current. capacitorCBB60 Motor Run Capacitor,Plastic CanCD60 Motor Start Capacitor Aluminum CanCD60 Motor Start Capacitor Bakelite CanCBB65 Air Conditioner Capacitor Aluminum CanCBB80 Lighting Capacitor Plastic/Aluminum CanCBB61 AC Fan Capacitor Plastic Can Box TypeAC Hard Start Capacitor/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
