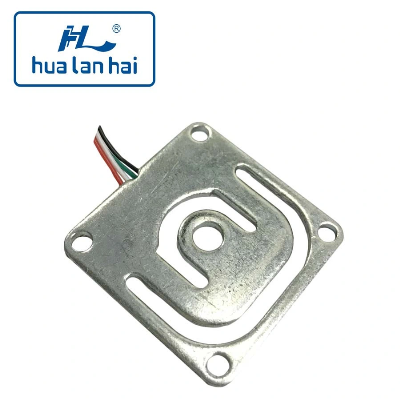

Load Cell Micro Czl928d or Czl928dB

Micro Load Cell (CZL928DA)Type:        single point load cellMaterial:     aluminum alloySurface:      anodized treatmentProtection:    IP65Suggested Platform Size:              200 ×200 mm  Application:   balances, kitchen scales   1. Rated LoadCZL928DA:50(Kg) CZL928DAD: 10,30,50 (Kg)2. Rated Output0.8±0.15mV/V(half bridge), 1.6±0.2mV/V(30, 50kg full bridge ),1.0±0.2mV/V(10kg full bridge)3. Zero Balance±0.3mV/V4. Input Resistance1000±10Ω5. Output Resistance1000±10Ω6. Excitation Voltage9-12VDC7. Nonlinearity0.05%F.S8. Hysteresis0.05%F.S9. Repeatability0.05%F.S10.Creep(30min)0.05%F.S11.Operating Temperature-10ºC To +50ºC12.Temperature Effect on Zero0.05%F.S/10ºC13.Temperature Effect on Span 0.05%F.S/10ºC14.Insulation Resistance2000MΩ(50VDC)15. Safe Overload 150%F.S16.Ultimate Overload200%FS17. Cable200mm(flat 4-wires)   Size: Company information:   Guangdong South China Sea Electronic Measuring Technology Co Ltd is specializing in producing resistance strain gauge, load cells, micro load cells, pressure sensors, portable dynamic axle weighing scales and other electrical measurement products.    The company has the formidable scientific research strength, improve the strict quality assurance system and excellent production equipment. The main products of strain gauge, load cell are certificated by RoHS, OIML(issued by EU.) CE etc. , the company subordinate products all technical supervision department issued by the national metrology license. In 2004 and 2005 respectively awarded by "Guangdong province private S&T enterprises " and " the Guangdong Hi-tech enterprise" title, in 2007 Dongguan intellectual property office granted "the patent pilot enterprise".    Our load cells, strain gauges, pressure transducers and portable axle weigh scales have been exported to the world for a long time and achieved a certain market share. We have representative in US, Canada, Germany, British, Russia, India, Australia, etc. By this, we push our high quality products to the world!  Packaging & Shipping  Carton Size: 38x30x30cm 400PCS/CTN FAQ About samples:We have stock for samples. About guarantee:Three months for free replacement and one year for free repair. About factory:We are original manufacturer with 700 employees in Dongguan. About certificates:OIML, CE, ROHS, ISO9001/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
