Schenck Load Cell Rtn 200t C3

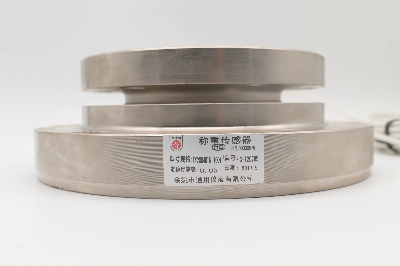

Description: HMD2004RTN RING TORSION LOAD CELLS: PRECISE WEIGHING UP TO 470 TONS Different HMD2004RTN ring torsion load cell versions are available for a wide range of maximum capacities (up to 470 tons) and feature very low height. They are well-suited for any type of container weighing task as well as for large platform scales. Typical applications include the construction of truck scales. Unlike other load cells of this type, HMD2004RTN load cells - due to the use of unique ring-shaped strain gauges - significantly minimize the effects of transverse and lateral loads. Key Features: Maximum capacity: 1 t to 470 t High precision and high signal-to-noise ratio, due to the 2.85 mV/V output signal Wide temperature range from -30 °C to +80 °C (optionally up to +110 °C) Resistance to chemicals Large cable cross-section for low temperature influence Very low height Different cable lengths and cable types available Also available as a complete weighing module, for easy mechanical integratio Drawing:   Capacity(kg)12.24.7101522334768100150220330470D ∅60∅60∅60∅75∅75∅75∅95∅130∅130∅150∅150∅225∅225∅270D1∅54∅54∅54∅75∅75∅75∅95∅130∅130∅150∅150∅225∅225∅270D2∅20∅20∅20∅30∅30∅30∅40∅60∅60∅70∅70∅100∅100∅120D3∅53∅53∅53           H17.57.57.56.56.56.51014141616242428H243434350505065758590100130145170H3   77777777101010  MODELHMD2004RTNCOMPREHENSIVE ERROR    0.02       0.03           0.05          OUTPUT SENSITIVITY            mV/V 2.85±0.25%           NONLINEARITY                %F.S   ± 0.02     ± 0.03      ± 0.05            REPEATABILITY             %F.S      0.02        0.02         0.03            HYSTERESIS               %F.S  ± 0.02     ± 0.03      ± 0.05               CREEP             (30min)%F.S ± 0.02     ± 0.03      ± 0.05         TEMP.EFFECT ON ZERO      %F.S/10ºC  ≤0.002    ≤0.003      ≤0.005          TEMP.EFFECT ON OUTPUT      %F.S/10ºC  ≤0.002    ≤0.003      ≤0.005               ZERO OUTPUT         %F.S.  ±1           ±1          ±2         INPUT RESISTANCE            Ω 4480±50          OUTPUT RESISTANCE         Ω4010±10         INSULATION RESISTANCE       MΩ           ≥5000         ≥2000             EXCITATION VOLTAGE      V(DC/AC)5~12V          OPERATION TEMP.RANGE          ºC-10~+80            OVERLOAD CAPACITY         %F.S.  150CAPACITY1~470tDEGREE OF PROTECTIONIP67/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
