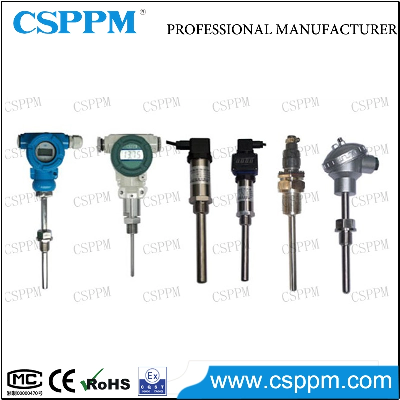

Thermocouple or Thermal Resistance Temperature Transducer Transmitter from China Factory

Thermocouple or Thermal Resistance Temperature Transducer from China FactoryDescriptionIt is composed of a temperature sensor and a signal converter. The signal converter is installed in the cold end connecting box of the temperature sensor. The temperature sensor is affected by the temperature to produce a differential voltage signal. This signal is amplified by the amplifier, and then through the voltage and current conversion, then produce a 4-20mA current signal or other 0-5V signal.FeaturesThey can measure temperatures of liquid, steam,gas and solid in producing.Characteristics are shock resistant, high-temperature resistant and long life.Used for temperature measuring and automatic controlling in scope from -200 to 1600ºC.SpecificationModelThermocouple PPM-WR series, thermal resistor PPM-WZ seriesMeasure Range-200 to 1600ºCPower Supply12-32VDCOutput Signal4-20mA, 0-5VDC, 0-10VDC optionalPrecision 0.1%,0.2%,0.5%, optionalDisplay MethodLCD or LED displayOperation temperature-40 to 85ºCEnvironment Temperature Effect0.25%/10ºCthermometric elementPt100,CU50,S,B,R.E,K,J,T optionalProtective tube diameter Φ4, Φ16, Φ18, Φ20, Φ22, Φ28, Φ35, Φ40 Alternativeconnectingwithout fixing device,fixed screw-thread,movable screw thread,movable flange, fixed flange  GB/ANSI standard, optionalInsert length50@h��@�@ or others requestedProtective tube materialiCr18Ni9Ti, ceramics, High alumina or corundum tube Nominal pressure
