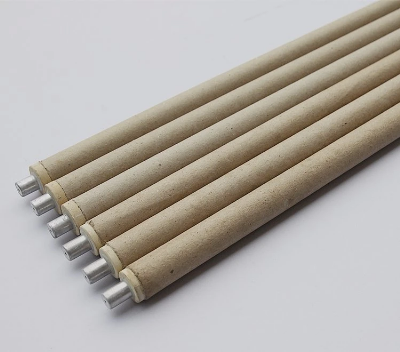

The fast reponse thermocouple is uesd foe measuring the temperature of molten steel and high temperature molten metal.It's disposable expendable thermocouple. Our products have high precision and high stability.According to the different needs of customers.We can provide a variety of lengh,variety of types and variety of slag caps expendable thermocouple. The technical parameter: According the different thermocouple wire, thermocouple has four type are S,R,B & WRe Type.According the different thermocouple connector, thermocouple head can be dividing in 602 type and 604 type. NameTypeModelThe bestMaxAccuracyWire diameter(mm)PtRh10%/PtSKS-602/6041500-17001750ºC≤±5ºC0.05PtRh13%/PtRKR-602/6041400-16001750ºC≤±5ºC0.05PtRh30%/PtRh6%BKB-602/6041400-16001800ºC≤±5ºC0.05WRe5%-WRe26%CKC(KW5/26)602/6041500-17001800ºC≤±7ºC0.08WRe3%-WRe25%DKD(KW3/25)602/6041500-17001800ºC≤±7ºC0.08 TypeModel602(Round bottom)KX-KR/S/B/W-602604(Triangle bottom)KX-KR/S/B/W-604 The length of the protecting tube:300mm,500mm,600mm,800mm,900mm,1000mm,1200mm,the length can also be customized by customers. Method of Use1.According to the measured object and range, selecting the appropriate protection tube length and suitable temperature measuring gun.2.Put the fast thermocouple on the temperature measuring gun, and the secondary instrument pointer (or digital) back to zero, this shows contacts good, can be measured.3.Fast thermocouple insertion depth of the molten steel with 300-400 - mm, don't test to furnace wall or dreg ,do fast, steady, accurate, when secondary instrument to get the results, should immediately carry guns, fast thermocouple immersion time in molten steel must not exceed 5 seconds, otherwise easy to burn temperature measuring gun.4,Raised temperature measuring gun from the furnace, take the used thermocouple down, and install a new one, pause for a few minutes, prepare the next measurement. Don't even measure even split, otherwise cause temperature fluctuations./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
