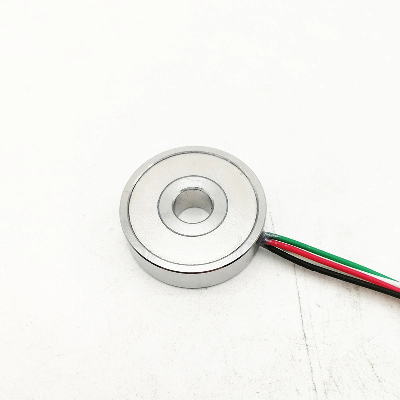

Brans B113 ring type load cells is also thru-Hole (Donut) Load Cells are major players when measuring the tightening of load directly. Our Thru-Hole Series offers a variety of capacities and inner diameter sizes making it ideal for bolt fastening applications.Products in use Thru-Hole/Donut Load Cell paired with Instrumentation.DatasheetNumberSpecificationsTechnique1Capacity50,100,200,500N, 1000N2Rated output2.0±20%mV/V3Zero balance± 0.05mV/V4Non‐linearity0.20%F.S.5Hysteresis0.20%F.S.6Repeatability0.20%F.S.7Creep(30min)0.10%F.S.8Temp.effect on output0.05%F.S./10ºC9Temp.effect on zero0.05%F.S./10ºC10Input impedance700±20Ω11Output impedance700±10Ω12Insulation≥5000MΩ/100VDC13Recommended excitation5V14Maximum excitation10V15Compensated temp range‐10~60ºC16Operation temp range‐20~80ºC17Safe overload150%F.S.18Ultimate overload200%F.S.19Cable sizeφ3×4000mm20Weight approx.0.1kg21MaterialStainless Steel22IP ClassIP66A variation of the compression load cells with a 'through-hole' design are made for installation around bolts or shafts. Fully welded stainless steel construction and high overload capability for optimum performance. Available capacity range is from 50N to 1000N with accuracy from 0.25% to 0.50%. Widely used for measuring of clamping forces, bolt loading and overload monitoring This load cell is a variation of the compression load cell and features a through-hole design for use as a load washer to measure bolt loading, clamping forces, and overloads. Rugged stainless steel construction and reliable strain gage technology make this unit popular for a variety of industrial applications.B113G:Customized Ring type load cells, please come to Brans Technology. bransensor.en.made-in-china.com/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
