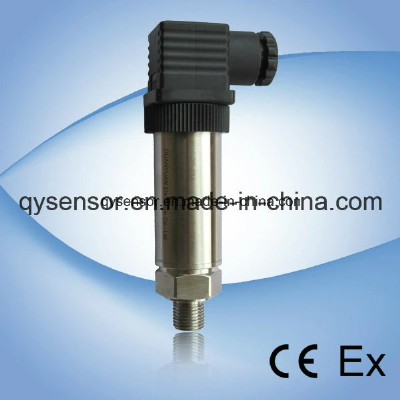

(0-5V) / (0-10V) / (4-20mA) Diffuse Silicon Pressure Sensor / Transmitter

Product Description (0-5V) / (0-10V) / (4-20mA) Diffuse Silicon Pressure Sensor / Transmitter   Model: QP-83ARange: -100~0KPa, 0~5KPa….0~500KPa….0~100 MPa Feature:Have the characteristics of high precision, good stability, long working life and high reliability. Easy to installation. Small in size, light in weight. Pressure connection and Electrical connection are able to chosen by customers. Suitable for measuring the gases and liquids.   Dimensions: (unit: mm)Product Parameters Technical Specifications:Measuring mediagases or liquids which are compatible to 316 stainless steelMeasuring range-100~0KPa,0~500KPa,0~40 MPaPressure typeGauge(G),Absolute(A),Sealed(S)Signal outputtransmitter, mA (2 wires)4~20transmitter, Vdc (3 wires)0~10, 1~5Combined accuracy%FS0.5, 0.2(selectable)Power supplyVdc12~36Compensated temp.ºC0~+70Storage temp.ºC-40~+120Operating temp.ºC-40~+85TCZ%FS/10ºC≤±0.3TCS%FS/10ºC≤±0.3Insulation resistanceMΩ>500 @ 100VdcElectrical connectionDIN43650,aviation connector,directly lead(selectable)Materialstainless steelPressure connectionG1/4,M20x1.5,M14x1.5, M12x1, M10x1Environment protectionIP65Safe overload%FS150Ultimate overload%FS200 Ordering code: model- range&type-rated output-accuracy-pressure connection-electrical connection-defend grade-the other requests.Example: QP-83A-0/300KPaG-4/20mA-0.5%FS-M20x1.5-DIN43650-IP65-***  Packaging & Shipping   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
