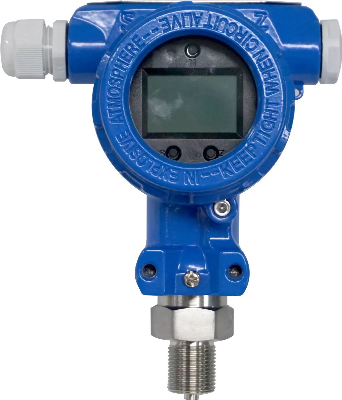

Chitic Diffused silicon pressure transmitter

Technical indicators  typeGGauge pressure transmitterAAbsolute pressure transmitterSSanitary type transmitter    Variety selectionAThreaded direct mounting typeBLead pressure bracket mounting typeCDiaphragm flange direct mounting typeDDiaphragm flange capillary far transmission type  The output signalF4-20ma+HARTS4-20MA two-wire system.UThe 485 bus    The flange material1304 stainless steel2316 stainless steel3316 l stainless steelExplosion-proof standardsDFlameproof Ex Dii C T6 GbKBan oil degreasing   Installation requirementsAPinto frameLRight Angle bent bracketNInstallation without support    Flanged injection solutionASilicone oil at low temperatureBGeneral silicone oilCHigh temperature silicone oilDFluorine oilThe installationWarning: The measured medium is not allowed to freeze, otherwise it will damage the sensing element isolation diaphragm, resulting in transmitter damage.The transmitter installation diagramOverall dimensions of transmitterInstallation Precautions1) Prevent the transmitter from contacting with corrosive or overheated medium under test.2) To prevent the deposition of dregs in the pressure guide pipe.3) The pressure guide tube should be as short as possible.4) The pressure guide tube should be installed in the place where the temperature gradient and temperature fluctuation are small.Flame-proof structureAll the electrical parts and circuit boards of the explosion-proof transmitter are placed in the explosion-proof housing . Even IF THE INSTRUMENT IS FAULTY AND sparks explode INSIDE, because THE instrument shell has sufficient mechanical strength and flameproof performance, not only the flameproof shell will not be damaged, but also the explosive mixture outside the shell will not explode.About CHINTFounded in 1984, the Chint Group provides safe, reliable and stable industrial electrical equipment and solutions for energy efficient management systems. With 30 years of development it has grown to be Asia' s largest low*voltage electrical product supplier and is the leading brand of the whole industry chain in industrial electric in Asia. With three R&D centers located in Europe, North America and China, there are also branches in over 20 countries and more than 30.000 employees in the world. CHINT provides reliable products, system solutions and services to more than 100 countries worldwide.•    3 Global Research Centers: Europe, North America, Asia Pacific•    6 International Marketing & Sales Area: Asia Pacific, Middle East and Africa, Europe, Latin America, North America, China•    9 Manufacturing Bases: China (Wenzhou, Shanghai, Hangzhou, Jiaxing, Xianyang, Jiuquan), Thailand, Egypt, Germany•    22 Logistics Centers 14 International Subsidiaries 17 Marketing Offices in China 2300 Sales CompaniesAbout ChiticChrtic Control Engineering Co.. Ltd. is a subsidiary company of Chint, and a leading provider of automation & control technologies and applications in China that helps the industry customers to improve operating safety, reliability and efficiency. Chitic has series of products including PCS1800 DCS, TDCS9200 DCS and CTS700 DCS, information platform for water company, control system for high speed rapier loom, drive system of switched reluctance motor, solar energy monitoring system, computing cloud center for new energy; etc. Chitic control system won 2006 National Science and Technology Progress Awards of China, CTS700 DCS won the award of 2010 Innovative Product of China. Chitic headquarter is located at the beautiful city of Hangzhou, two hours drive from Shanghai. Chitic has its own science & technology park, Chitic Park, which covers about six thousand square meters.Our Business SectorTypical Reference/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
