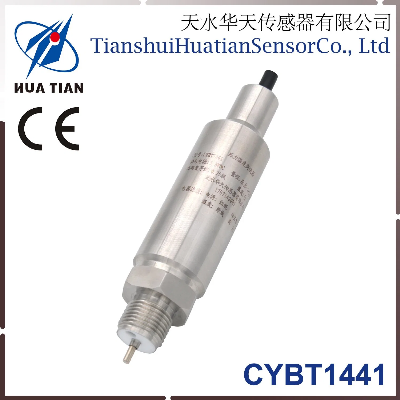

Cybt1441 Temperature and Pressure Integrated Transmitter

Features·Measure temperature and pressure at the same time;·Full stainless steel construction; optional pressure port; flush diaphragm type, sanitation type and anti-corrosive type are available; protection IP65;·Optional output signal; local calibration and displayable;·Reversed-polarity, transient current & voltage protection, which conform to EMI standard;·Intrinsic safe ex-proof version conforming to GB3836.4 ExiaII CT6 Regulation; Ex-proof Certificate is issued;·EXD product conforming to GB3836.2 ExdII CT6 Regulation; EXD Certificate is issued.IntroductionThe transmitter uses piezoresistive pressure sensor and temperature sensor with isolated stainless steel diaphragm as signal sensing element, through automatic testing, laser trimming compensating zero and sensitivity in wider temperature range; the amplifier circuit is in stainless steel housing, transforming sensor signal into standard output signal. Through strict component making, semi-finished product and all-finished product testing and aging, the transmitter is stable and reliable, having excellent flexibility, sensitivity and diversity.The product is widely used for pressure measure and control of petroleum, chemi-industry, metallurgy, power station and hydrology, etc.SpecificationPressure range: 0~0.5m~20mOverpressure: 1.5 times FS(min. value is valid) Pressure type: gauge, absolute or sealed gaugeAccuracy: 0.2%FS/0.5%FS(typ.) 1.0%FS(max.)Long-term stability: 0.2%FS/year(typ. 0.3%FS/year(max.)Zero temp. drift: 0.03%FS/ºC(≤15PSI); 0.02%FS/ºC(>15PSI)FS temp. drift: 0.03%FS/ºC(≤15PSI); 0.02%FS/ºC(>15PSI)Operation temp. -20ºC~85ºCStorage temp.: -40ºC~125ºCPower supply: 9~36VDC Output signal: 4~20mADC Transmitting: 2-wireLoad: ≤(U-9)/0.02ΩProtection: IP65 for both cable and plug connectionElectric connection: Plug connection or 1.5m cable connectionHousing: stainless steel 1Cr18Ni9TiDiaphragm: stainless steel 316LO-ring: VitonOutline Construction(Unit: mm)Electric ConnectionPlug Connection Wiring /Cable Connection WiringPin2-wireColor2-wire1+VRed+V20V/+OUTBlack0V/+OUT/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
