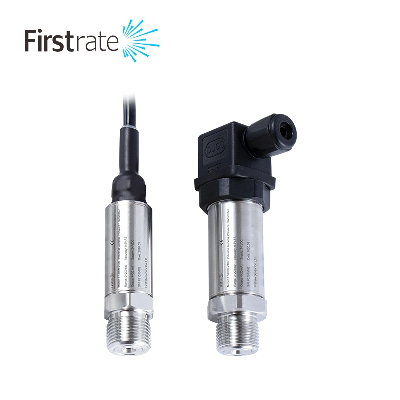

FST800-2100 oil water air 4-20ma Output Pressure Sensor Transmitter

FST800-2100 0-5V 0.5-4.5V 0-10V 4-20ma Output Pressure Sensor TransmitterProduct Parameters    Type of pressure   Gauge pressure, absolute pressure  Pressure range   -100kPa…0kPa~20kPa…60MPa  Output signal    4~20mA         0.5~4.5VDC          0~5VDC       0~10VDC   Signal line specifications     2Wire              3Wire                    3Wire           3Wire   Supply voltage   9~30VDC     5VDC/9~30VDC     9~30VDC      15~30VDC  Precision   ±0.5%FS  ±1%FS  Long-term stability   ≤0.2%FS/year  Overload pressure   200%FS  Breaking pressure   300%FS  Protection level   lP65  Shell material   304 stainless steel  Storage temperature   -40~+125ºC  Operating temperature   -20~+85ºC Compensation temperature: -10~+70ºC  Pressure port   M20×1.5, G1/4, NPT1/4 can be equipped with other threads  Electrical connections   Direct lead, large Hessman, watertight connector (IP68)  Remarks   Current type can be equipped with display (15~30VDC power supply)  Detailed PhotosApplicationPackaging & Shipping CertificationsFAQQ:  Are you manufacturer?A:  Yes, We are professional sensor manufacturer over 50 years! Our technical team has more than 20 engineers. Q:  Can you accept OEM service ?A:  Yes, we can put your company information and logo on our sensors. Q:  Can I be your distributor?A:  Yes, we are looking for distributors in oversea market. Q:  What is your lead time?A:  Normally 7-10days. For quantity above100pcs, need extra 3-5 working days.   Purchase guide   To recommend you the most suitable sensor, please tell us below information.1.  Working temperature: -40~+125 °C ?2.  Test range?3.  Output: 4-20mA , RS485 or others?4.  Screw: G1/4, 1/4NPT, R1/4, M20*1.5?5.  Electrical connection: DIN43650, Packard, Direct lead?6.  Order quantity: ?/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
