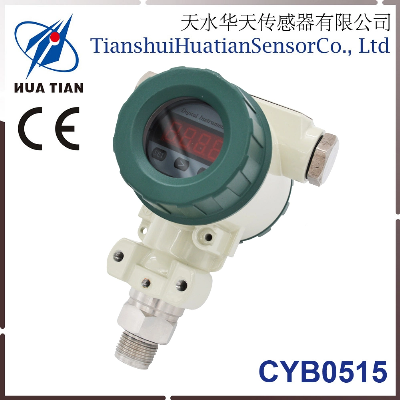

Cyb0515 Flat Diaphragm Digital Display Pressure Transmitter

1 Introduction    According to the application characteristics of different industries, CYB0500 series pressure transmitter carefully selects high reliable silicon piezoresistive, ceramic capacitor, sapphire, sputtered film pressure sensor as sensitive core. After temperature compensation, digital circuit correction and signal conditioning, it outputs standard industrial application and networking signal. The production process continues the rigorous work style and fine process control spirit of the enterprise for 50 years. Each type of product has gone through the process of careful design, component selection, process verification and solidification, cyclic loading and stress relief, aging, environmental simulation test, etc., to ensure the stability and reliability of each product.2 Features    Field display, multiple output signal selection         High stability and low drift      Explosion proof, IP66 protection                       It can be used in polluted, humid, flammable and explosive environment3 Main uses    With its excellent accuracy and reliability, CYB0500 series pressure transmitter is widely used in many kinds of pressure measurement users, especially in coal mine, oil field, chemical industry, civil explosion, environmental protection, medicine, water affairs, shipping and other industries, Huatian brand pressure transmitter has been widely recognized by customers.4. Technical indicatorsRangeMPa-0.1MPa…0kPa~10kPa…100MPaForm of pressureG,A,SOutput signal (mA)4 mA ~20 mA (HART protocol can be superimposed),RS485 (4 mA~20 mA signal can be output at the same time)0~5V (0 ~10) three wire systemAccuracy level0.1(customized)0.250.5Nonlinear (FS%)≤0.1≤0.2≤0.4Hysteresis, repeatability (FS%)≤0.05≤0.05≤0.1Zero and sensitivity temperature drift (FS / ºC)≤0.015≤0.03≤0.05Long term stability (FS / year)≤0.1≤0.2≤0.5Operating voltage (VDC)+15~ + 30 (calibration value is + 24)Field display4Bit LED or LCDCompensation temperature (ºC)0~+50(≤200kPa),-10ºC~70ºC(>200kPa)Operating temperature (ºC)-40~ + 85,   - 20 ºC ~60 ºC (explosion proof)Overload capacity (%) ≤200(
