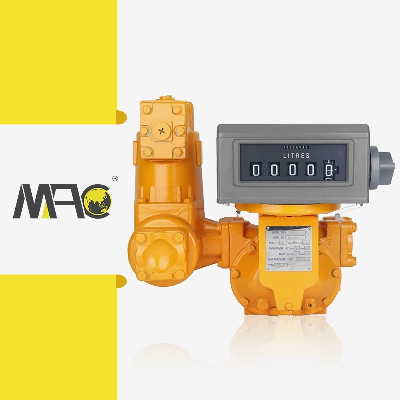

Factory Price Mechanical Positive Displacement Pd Fuel Flow MeterWorking Principle For The Metering BodyMacsensor series meter is positive displacement meter for liquids. They are designed for liquid metering both in transfer and process control applications. Thanks to their design they are easy to keep and can suit a wide range of applications. The meter consists of a housing where two bladed displacement rotors and a central single blocking rotor turn in synchronized relationship within three cylindrical bores with no metal-to-metal contact within the meter element. Each rotor is supported on either end by a bearing plate through which the rotor shafts protrude.The bladed displacement rotors, alternately move through the two half-cylinder bores of the meter element, while the single blocking rotor rotates within its bore in such a way as to produce a continuous capillary seal between the unmetered upstream product and the metered, downstream product.At one end of each rotor shaft is a timing gear. The blocking rotor gear, having twice the number of teeth of each of the displacement rotor gears, rotates at half the RPM of the displacement rotors.Features of Flow meterPositive Displacement Flow Meter with excellent mechanism,with high accuracy and repeatability;Low Pressure loss and long life service;Solid quality and Multiple Choice.Meter with mechanical register,air eliminator and strainer;Meter with electronic register,air eliminator and solenoid valve;LPG Meter with mechanical register,differential valve,air eliminator;Preset Type,etc.·Robust Positive Displacement Mechanical Design·Low Pressure loss,long service life·Calibrator adjustable to 0.2% custody accuracy·Material:aluminum,viton seal,veeder-root register in gallons and liters·Max Pressure:10bar·Max Temperature:80ºC·Sizes range from 40mm to 100mmSpecification ItemM-40M-50M-80M-100Size40mm,1 1/2''50mm,2''80mm,3''100mm,4''Flow Range25-250LPM55-550LPM115-1150LPM170-1700LPMVolume per Revolution0.309L0.681L1.839L5.102LMax Pressure10Bar/150Psi Accuracy±0.2% Repeatability≤0.05% MeasurementLiter/Gallon You will benefit from Macsensor magnetic flow meter? Saving money Saving labor Saving time How to choose a suitable flow meter ? /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
