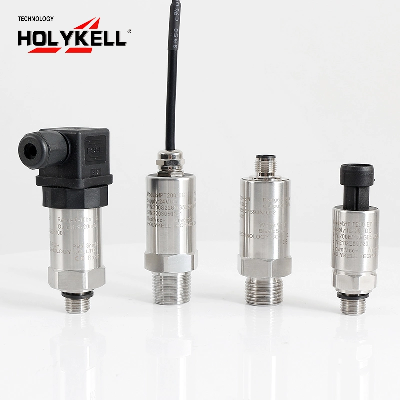

Holykell China Supplier Diffusion Silicon Absolute Liquid Pressure Transmitter

Holykell china supplier diffusion silicon absolute liquid pressure transmitterProduct DescriptionHPT200-E water pressure sensor use high quality imported Germany piezoresistive pressure sensor withisolated stainless steel diaphragm as signal sensing element,5-10 years life design. Excellent shock andvibration Rated and strong RFI & EMI resistance,Rugged Construction, Can withstand the most stringentconditionsYou will benefit from Our HPT200-E Water pressure sensor ?a. Fully Welded Stainless Steel Housingb. Non-linearity up to 0.15% of spanc. High Shock and Vibrationd. Customized outputs, electrical connections and pressure portse. CE RoHS certificate approvedf. Overcurrent/ overvoltage protectiong. Full sealed high stability impact designh. Polarity Protection (Non-Voltage signal) I.Full sealed high stability impact designSpecificate of Water Pressure Sensor ParameterHPT200-EPressure RangeGauge/Relative, Absolute optional.Safe Overload150% F.S. Burst Pressure300% F.S. Accuracy≤ ±0.5%F.S (Typical)≤ ±0.25%F.S (Customized)Total Error Band0...50 °C max. ±1.0%FS; -10...70 °C max. ±1.5 %FSLong Stability 0.15%F.S±0.05%Working Temp-40ºC~85ºCCompensation Temp20...40 °CStorage Temp-40ºC~105ºCMedium CompatibleCompatible with 304 Stainless Steel or 1Cr18Ni9Ti stainless steelElectronic Wire2 Wires3 WiresOutput4~20mA0~5V,1~5V, 0-10VPower Supply10~30Vdc                                          8~30Vdc,  15-30VdcLoad ResistanceCurrent type: (U-10)/0.02 (Ω); Voltage type: >100K ΩInsulate resistance>100M Ω @100V dcZero Temp. Drift 0.03%FS/ºC(≤100kPa), 0.02%FS/ºC(>100kPa)Body materialsSUS304 stainless steelMaterial of diaphragm316L Stainless steelFilling oilSilicon oilElectronic connection--DIN43650 Hirschmann Connector, 4-poles and IP65.-M12*1.04pinsIP67-Directly Outlet Cable Type IP67 ( Special proof grade by customized).Limiting Frequency200HzMechanical vibration±20gPressure connect portG1/4''male, G1/2''male, 1/8''NPT male, 1/4''NPT male, 1/2''NPT male and female optional. Explosion Proof GradeEX(ia) IICT6Response time≤10msEndurance>100 million cycles, 0…100 %FS at 25ºCOptionsPressure Connection, Electrical Connection Others on request.Application*Economic applications*Petroleum*Chemi-industry*Metallurgy*Power station*Hydrology, Agriculture*Environments in the process industryWhy Choose HolykellFAQIn order to recommend you the most suitable pressure transmitter and make an accurate quotation, please fill in thefollowing form and send it to me, thanks   RequirementsNOTechnical Parameters1Pressure range50bar 2Output signal4-20mA 3Cable length 4Quantity Your other requirements will be welcome  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
