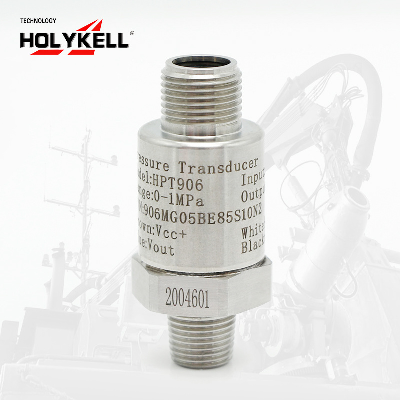

Holykell Hydraulic oil pressure sputter film diaphragm pressure transducer transmitters HPT906 Product DescriptionHPT906 U.K sputtered thin film pressure transducer unit offers an unbeatable price/performance ratio in a small package size. It features all-stainless steel wetted parts, and hermetically sealed enclosures without O-rings. Dual seal approval and flush mounting are optional.A broad selection of electrical and pressure connections, and a wide choice of electrical outputs to allow stock configurations suitable for most applications without modification. Product Parameter Pressure Range 0-5...2000bar optional Overload 300% F.S. (5…25Bar) 200% F.S. (40…600Bar) 150% F.S.(700…2000Bar) Burst Pressure 4000% F.S.(5…25Bar) 1000% F.S. (40…600Bar) 200% F.S.(700…2000Bar) Accuracy ≤ ±0.2%F.S Medium Temp -30ºC …85ºC Medium Compatible Compatible with 316L Stainless Steel Output 4-20mA, 0-5V, 0-10V, 0.5-4.5V Power Supply 10-30VDC, 5VDC Materials 316 Stainless steel Electronic connection 4 Pins M12 Connectors IP67 Pressure connect port G1/4''male, 1/4''NPT male optional. (or mass order by customized) Response time ≤1ms Product Features for hydraulic pressure sensor *Wide range of measurement-----0-5...1000barMaintain safe and reliable operation in high fluid pressures hydraulic system*200%F.S overload and 1000%F.S Burst Pressure are designed for hydraulic systemTo cope with the harsh working conditions of construction machinery, has a good service life*High strength EMC and RFI protectionIt can be used well in hydraulic system with high levels of electromagnetic and radiofrequency interference*Imported sputtered film chipsFast dynamic response frequency, high stability of zero point*IP67 waterproof and hermetically sealed enclosures without O-ringsIt will keep working even if there is water ingress or condensation in the hydraulic unit*Broad range of temperatures------- -40ºC …85ºCIt will works well in all climates Product Application·Gas pressure measurement·Oxygen Services·Petrochemical industry·Hydraulic and pneumatic systems·Mine metallurgy·HAVC, LNG, CNG Systems·Refrigeration, Compressor systems·Industrial machinery manufacture·Construction, engineering machinery·Combustion engine, oil engine and generator units.·Hydraulic and pneumatic systemsOur ServicesCompany Information FAQHow to place an orderIn order to recommend you the most suitable pressure transmitter and make an accurate quotation, please fill in the following form and send it to me , thanksRequirementsNOTechnical Parameters1Pressure sensor50bar 2Output signal4-20mA 3Cable length 4Quantity Your other requirements will be welcomePrice is for 5m range 420ma 5 m PE cable with vents , If you want to order other specification ,you can contacts us directly ,we will reply you 24 hours online . /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
