-100kpa 100MPa High Temperature Resistant Pressure Transmitter Transducer

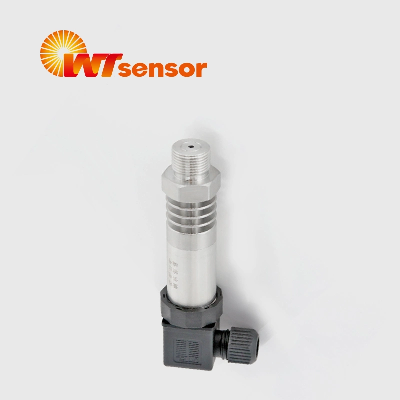

PCM300T High Temperature Pressure Transmitter  Features:SS316L diaphragm structureUsing the imported high temperature resistant chipApplicable to wide medium temperature rangeStrong anti-interference, good long-term stabilityDirectly contacting with the measured high temperature medium, and improving the pressure response frequencyProviding ample pressure ranges for low pressure, medium pressure and high pressureAnti-vibration, shock resistance, and corrosion resistanceApplication:Process controlAerospaceChemical product and chemical industryServo valve and transmissionProduct overview:PCM300T High Temperature Pressure Transmitter adopts the high temperature resistant pressure sensor as the signal measuring element,and through the heat dissipation structure for the transmitter, the measured medium pressure is transmitted to the sensor; the high-precisionsignal processing circuit is located in the stainless steel housing, and transforms the sensor output signal into the standard output signal.  Performance parametersPressure range-100kPa…0~10kPa…60MPaPressure referenceGauge pressure, Absolute pressure, Sealed gauge pressureSupply & output4~20mA, 0~5V, 1~5V, 0~10V, 1~10V (12~30VDC)0.5~4.5V R/M(5VDC)Accuracy2%FS (pressure range -5~5kPa)0.5%FS (the rest)Hysteresis and repeatability0.1%FSTemperature drift±1.5%FS(-20ºC~85ºC)Response time≤1ms (Up to 90%FS)Overpressure150%FSService life≥10×106 pressure cyclesAmbient temperature-20ºC~85ºCMedium temp.-30ºC~350ºCStorage temp.-40ºC~125ºCPerformance parameters (cont.)EMC-interferenceIEC 61000-6-3EMC-anti-interferenceIEC 61000-6-2Insulation resistance≥100MΩ/250VDC(200MΩ/500VDC)Anti-vibration performanceSine curve: 20g, 25Hz~2kHz; IEC 60068-2-6Random: 7.5grms, 5Hz~1kHz; IEC 60068-2-64Shock resistanceShock: 200g/1ms; IEC 60068-2-27Free falling body: 1m; IEC 60068-2-32Protection gradeIP65Medium compatibilityAll kinds of media compatible with SS316LNet weight220~360gEx-proof gradeIntrinsically safe explosion-proof ExiaII CT6 (only for 4~20mA)Cooling fan3 pieces, 5 pieces, 7 piecesHexahedral sizeHEX27  Electrical connection & wiring modeCooling fanNote: For the cooling fan selection, please consider the on-site ventilation environment. Pressure connectionPressure connection (cont.)Note: The torque depends on all kinds of factors, such as gasket material, kitting material, thread lubrication and pressure.   Pressure range selectionPressure range codePressure referencePressure rangeOverpressureBurst pressureRemark1kG0~1kPa200%FS600%FSNote 22kG0~2kPa200%FS600%FSNote 25kG0~5kPa200%FS500%FSNote 27kG0~7kPa200%FS500%FS 10kG0~10kPa200%FS500%FS 20kG0~20kPa200%FS500%FS 35kG0~35kPa200%FS500%FS 70kG0~70kPa200%FS500%FS 100kG0~100kPa150%FS300%FS 160kG0~160kPa150%FS300%FS 250kG0~250kPa150%FS300%FS 400kG0~400kPa150%FS300%FS 600kG0~600kPa150%FS300%FS 1MG0~1MPa150%FS300%FS Pressure range selection (cont.)Pressure range codePressure referencePressure rangeOverpressureBurst pressureRemark1.6MG0~1.6MPa150%FS300%FS 2.5MG0~2.5MPa150%FS300%FS 35kA0~35kPa150%FS500%FS 100kA0~100kPa150%FS300%FS 160kA0~160kPa150%FS300%FS 250kA0~250kPa150%FS300%FS 400kA0~400kPa150%FS300%FS 600kA0~600kPa150%FS300%FS 1MA0~1MPa150%FS300%FS 1.6MA0~1.6MPa150%FS300%FS 2.5MA0~2.5MPa150%FS300%FS 4MA0~4MPa150%FS300%FS 1MS0~1MPa150%FS300%FS 1.6MS0~1.6MPa150%FS300%FS 2.5MS0~2.5MPa150%FS300%FS 4MS0~4MPa150%FS300%FS 6MS0~6MPa150%FS300%FS 10MS0~10MPa150%FS300%FS 16MS0~16MPa150%FS300%FS 25MS0~25MPa150%FS300%FS 40MS0~40MPa150%FS300%FS 60MS0~60MPa150%FS200%FS N1kOmission-100~0kPa150%FS300%FS N2kOmission0~-100kPa150%FS300%FS N3kOmission-100~100kPa150%FS300%FS N5MOmission-100~250kPa150%FS300%FS N7MOmission-0.1~0.6MPa150%FS300%FS N8MOmission-0.1~1MPa150%FS300%FS N9MOmission-0.1~1.6MPa150%FS300%FS N10MOmission-0.1~2.5MPa150%FS300%FS   Note 1: G stands for gauge pressure, A, absolute pressure, S, sealed gauge pressure.Note 2: Select the non-oil filling pressure sensor, and the measurement medium must be clean gas.Accessory   Accessory (cont.)   How to order  About US:           Certification:   FAQ:1.    Q: Are you manufacturer or trading company?         A: We are manufacturer which focuses on pressure sensor, pressure gauge and level sensor for 33 years. 2.    Q: What international certificates do you have?         A: ISO9001, CE, RoHS Certificated. 3.    Q: What is your production capacity?         A: We produced 2000000 pieces pressure sensor since year 2017. 4.    Q: What is the lead time of your product?         A: Stocks are available for some products. The typical lead time is 6~14 working days for product without customization.         Note: lead time may vary base on different products. Please contact us for detailed lead time.  5.    Q: What is the warranty of your products?        A: Our warranty time is 18 months after shipment. 6.    Q: Do you provide customized products?        A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.   /* January 22
