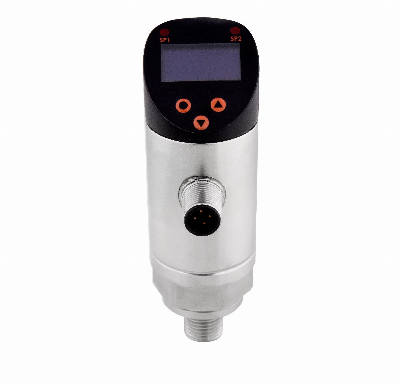

PNP, NPN Pressure Switch PCM740

ApplicationsHydropowerChemical industryCity water supplyScientific researchAccurate measurement and control of pressure of fluidsOverviewPCM710 electronic digital pressure switch is an intelligent digital product for pressure measuring and controlling which integrates pressure measurement, display, output and control. The product is in full electronic structure. Piezoresistive silicon pressure sensor is adopted in the front end. The output signal is processed by the amplifier of high precision and low temperature drift, and then sent into high precision A/D converter. Through arithmetic processing by microprocessor, the output signal is displayed on site with 2-way switch output, accomplishing the measurement of the pressure of control system.PCM710 has advantages of flexible use, simple operation, easy debugging and high safety and reliability. It is widely used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic and other industries for the measurement, display and control of pressure of fluids.  Performance parameters Pressure range0~10kPa…100MPaOverpressure150~300%F.S.Accuracy0.1, 0.5Supply12 - 30V, 24V recommendedDisplay modeOLED display of 4 digitsOutput mode2-way switch, NPN and PNP compatibleLoad capacity≤24V 1.2APower consumption≤15mAOperating temp.-25ºC-80ºCStorage temp.-40ºC-100ºCResponse time≤20msInsulation100MΩ/250VDCProtectionIP65  Structural performance parameters Housing material304Medium compatibilityLiquid contacting diaphragm 316L, pressure port 304  Structure and dimensions Wring method Pressure range selection CodePressure referencePressure rangeOverpressure %FSBurst pressure %FS10kG0~10kPa30060035kG0~35kPa30060070kG0~70kPa300600100kG, A0~100kPa200500250kG, A0~250kPa200500400kG, A0~400kPa200500600kG, A0~600kPa2005001.0MG, A0~1.0MPa2005002.5MG, S0~2.5MPa2005006MS0~6MPa20040010MS0~10MPa20040016MS0~16MPa20040025MS0~25MPa15030040MS0~40MPa15030060MS0~60MPa150300100MS0~100MPa150200Note: G: Gauge pressure, A: Absolute pressure, S: Sealed gauge pressure  How to order Example: PCM710-1MGP4C1Refer to PCM710 pressure switch, with pressure range 1MPa, gauge pressure, accuracy ±0.2%FS, and threaded connection M20×1.5.  Optional accessories NameSpecificationM12×1 female with wireM12×1 female 5-pin with wire 2mOrdering tips:Ensure compatibility between measured media and contacting part of product.Customization is available for special requirements on the appearance and performance parameters of the product.About Us:Certifications:FAQ:1.    Q: Are you manufacturer or trading company?         A: We are manufacturer which focuses on pressure sensor, pressure gauge and level sensor for 33 years. 2.    Q: What international certificates do you have?         A: ISO9001, CE, RoHS Certificated. 3.    Q: What is your production capacity?         A: We produced 2000000 pieces pressure sensor since year 2017. 4.    Q: What is the lead time of your product?         A: Stocks are available for some products. The typical lead time is 6~14 working days for product without customization.         Note: lead time may vary base on different products. Please contact us for detailed lead time.  5.    Q: What is the warranty of your products?        A: Our warranty time is 18 months after shipment. 6.    Q: Do you provide customized products?        A: Yes, we can laser mark your logo, model and product information according to your require /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
