High Temperature Sensor Ex-Proof Temperature Sensor

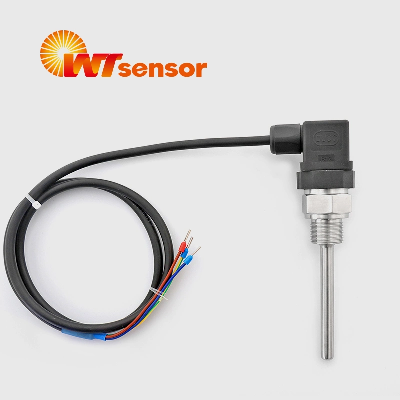

PCT100  Platinum Resistance Temperature Transmitter Product overview PCT100 Platinum temperature sensor measures range from -50ºC to 250ºC with PT100 PT1000. Insertion length ≥10mm, diameter Φ8mm, accuracy ±0.5%. Electrical connection is DIN43650 of 2 wire or 3 wire. It is applicable to temperature measurement of water, liquid, gas with OEM and customization. FeaturesPlatinum temperature sensor Vibration resistance, good reliability, high accuracyPT100, (PT1000 selectable)China OEM PCT100 PT1000 Platinum temperature sensor, CE DIN43650 0.5% accuracy 8mm diameter temperature sensor   Performance parameters Temperature range-50ºC~250ºCSupply & output4~20mA(16~36VDC)Accuracy±0.5%FS(typ.)Sensing elementPt100 Grade AInsulation strength100MΩ/250VDCResponse time≤30sLong term stability≤0.2%FS/yearInsertion diameterΦ8mmStorage temp.-40ºC~85ºCElectrical connectionDIN43650, DIN43650 with cableProtectionIP65Material304Max. mounting torque25Nm  Structure   Temperature range selection Temperature range codeTemperature rangeRemarkT1-50ºC~100ºC T2-50ºC~150ºC T3-50ºC~200ºC T4-50ºC~250ºC T50ºC~100ºC T60ºC~150ºC T70ºC~200ºC T80ºC~250ºC   Accessory   How to order  Ordering tips:Ensure compatibility between measured media and contacting part of product.For special requirements on the product appearance and performance parameters, customization is available.About Us:Certifications:FAQ:1.    Q: Are you manufacturer or trading company?         A: We are manufacturer which focuses on pressure sensor for 33 years. 2.    Q: What international certificates do you have?         A: ISO9001, CE, RoHS Certificated. 3.    Q: What is your production capacity?         A: We produced 1500000 pieces pressure sensor in year 2017. 4.    Q: What is the lead time of your product?         A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.         Note: lead time may vary base on different products. Please contact us for detailed lead time.  5.    Q: What is the warranty of your products?        A: Our warranty time is 18 months after shipment. 6.    Q: Do you provide customized products?        A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
