Piezoresistive Pressure Transducer 4-20mA High Accuracy Differential Pressure Sensor

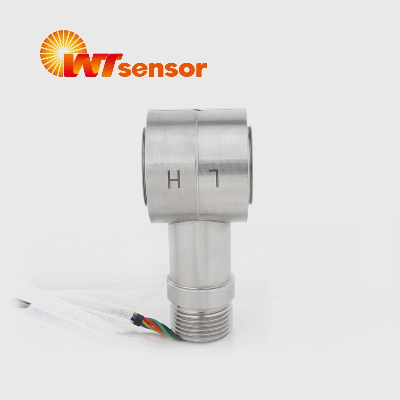

                PC90D Monocrystalline Silicon Differential Pressure SensorFeaturesImported ultra-high stability differential pressure dieHigh accuracy and excellent stability Static pressure error within ±0.1%FS/10MPaPatented double overpressure protection diaphragm designUnilateral overpressure limit of up to 40MPaConstant current/constant voltage excitation316L stainless steel all welded integrated structurePositive and negative pressure completely symmetrical, no O-ring inside, with small flange kitApplicationsDifferential pressure transmitter core componentDifferential pressure flow transmitter core componentOverview PC90D Monocrystalline Silicon Differential Pressure Sensor is a kind of differential pressure sensor designed with overpressure protection function. The differential pressure sensitive core element adopts high performance piezoresistive silicon chip, which is assembled in all-welded seal structure and filled with silicon oil in high vacuum. Diaphragm of different materials isolates measuring medium and differential pressure die, meanwhile, the sensor performs long-term reliable measurement of differential pressure signals of various strong corrosive media. Differential pressure sensor converts the measured differential pressure signal into millivolt voltage signal proportional to its linearity by external constant current or constant voltage excitation.                                                             Performance parameters SupplyConstant voltage / constant currentOperating temp.-40ºC-85ºCMedium temp.-50ºC-125ºCOutput voltage60~140mVZero temp. coefficient±0.05%FS/ºCFull scale span temp. impact-0.2±0.03%FS/ºCTemp. hysteresis±0.05%FSPressure hysteresis±0.025%FSLong-term drift±0.05%FS/YearNonlinearity±0.1%FS(Typical)Static pressure impact±0.1%FS/10MPaDiaphragm materialStainless steel 316L  Electrical connection   Structure & dimensions                                                                          Pressure range selection CodePressure rangeUnilateral overpressureStatic pressure6k0-600Pa~6kPa16MPa25MPa40k0-1kPa~40kPa16MPa40MPa100k0-1.5kPa~100kPa16MPa40MPa250k0-2.5kPa~250kPa16MPa40MPa1M0-10kPa~1MPa16MPa40MPa3M0-30kPa~3MPa16MPa40MPa  Accessories   How to order Example: PC90D-100kH11M1R1                                                                                                            Refer to product model PC90D, with pressure range 0-1.5Pa~100kPa, thread 55-16 British thread, diaphragm material stainless steel 316L, and filling oil silicon oil.Ordering tips:Accessories need to be ordered separately.About Us:Certifications:FAQ:1.    Q: Are you manufacturer or trading company?        A: We are manufacturer which focuses on pressure sensor for 33 years.2.    Q: What international certificates do you have?        A: ISO9001, CE, RoHS Certificated.3.    Q: What is your production capacity?        A: We produced 1500000 pieces pressure sensor in year 2017.4.    Q: What is the lead time of your product?        A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.        Note: lead time may vary base on different products. Please contact us for detailed lead time. 5.    Q: What is the warranty of your products?       A: Our warranty time is 18 months after shipment.6.    Q: Do you provide customized products?       A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
