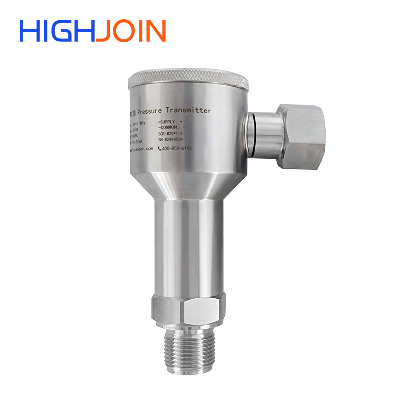

Product Overview:HPM128 Explosion-proof Pressure Transmitter uses high stable and high reliably diffused silicon as signal measuring component. It is processed through automatic testing and laser trimming to achieve wide temperature compensation. The built-in signal modulation circuit can transform the millivolt signal of transmitter to standard current and voltage signal output, which also can be connected to computers, control instruments and display instruments to accomplish remote signal output. HPM128 adopts all stainless steel structure with anti-explosion design, it can be used in hostile environment for a long time. This product can be widely used in petroleum industry, chemical industry, power enterprise , metallurgy industry, geological industry , hydrological industry and shipping industry especially for the inflammable and explosive field.Features:·All stainless steel,various interfaces·Intrinsically safe explosion-proof type Ex ia IICT6, blowout preventer explosion-proof type Ex ia IICT6·Wide pressure range, available to measure absolute pressure,gauge pressure and sealed gauge pressure·Good sealing property, long-term stability movement ·High strength, anti-vibrationParameters: Measuring MediumLiquid, Gas or SteamPressure Range-100kPa...0~10kPa...100MPaOverload1.5 times pressure range of full scalePressure TypeGauge, Absolute or Sealed GaugeAccuracy±0.2%FS(Typical), ±0.5%FS(Max)Long-term Stability±0.1%FS/year (Typical), ±0.2%FS/year (Max)Temperature Coefficient of Zero±0.03%FS/ºC(Reference 25ºC)Temperature Coefficient of Full Scale±0.03%FS/ºC(Reference 25ºC)Compensation Temperature0~70ºCWorking Temperature-30~85ºCStorage Temperature-40~120ºCSupply Voltage24VDCOutput Signal4~20mADCInsulation Resistance100MΩ,500VDCProtection of ShellIP65Vibration20g(20~5000Hz)Electrical ConnectionDedicated Shield Cable 1.5 metersStructure Drawing:Pressure Connection: G12M20X1.5 Ordering Guide: Item NO.Type HPM128Explosion-proof Pressure Transmitter Pressure range Measuring Range (0~X)kPaFill out X directly CodeOutput Signal B1(4~20)mAB3(0~10)VB5(1~5)VB6(0.5~4.5)V CodeThread Spec P1M20×1.5P4G1/2 CodeElectrical Connection C2Cable Output CodeStructure&MaterialDiaphragmInterfaceShellM1316L316LStainless SteelM2316L316L316LM3TantalumHastelloy316LM4TitaniumTitanium316L CodeAddtional FunctionsGGauge Pressure(Default)AAbsolute PressureSSealed Gauge PressureiIntrinsic Safety Type,Exia II CT6dExplosion-proof Type , Exd II CT6HPM128(0~100)kPaB1P1C2M1G dRelated Products:Certification:FAQ:1. Q: Are you manufacturer or trading company? A: We are manufacturer which focuses on sensor for 10 years.2. Q: What's your quality control system? A: MC, ISO9001, CE Certificated.3. Q: What is the warranty of your products? A: Our warranty time is 18 months after shipment. 4. Q: What is lead time of your product? A: Normally, our factory lead time is within 10~15 working days for products without customization. You can also check lead time detail with our sales depending on different items. 5. Q: Do you provide customized products? A: Yes, we can laser mark your logo on products; OEM and ODM customization are welcomed. 6. Q: What is your MOQ? A: We have no MOQ limit, small quantity order is acceptable. 7. Q: What's the transport? A: Express such as DHL, FedEx, TNT, UPS for freight prepaid; and we can also use your own courier account to do the freight collect. For more goods we can arrange by air or by Sea. 8. Q: What is your terms of payment ? A: We could accept T/T, Paypal, WU./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
