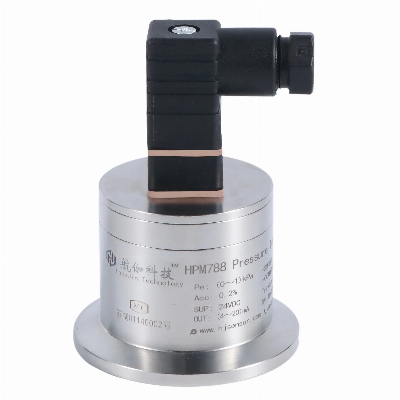

Ceramic Sanitary impact Resistance Pressure Transmitter

Product Overview:HPM788 Ceramic Hygienic Pressure Transmitter adopts imported ceramic sensor as sensitive element, and flat film encapsulation mode directly receives pressure signal. With the high elasticity, wear resistance, corrosion resistance, quick heat dissipation of ceramic, the transmitter has excellent heat stability and very low temperature excursion. Meanwhile, the minimal range is 300Pa and the overload capacity can reach dozens of times of full-scale, which totally solves the problems for the defective overloaded capacity for the small range. So it is very suitable for measuring micro pressure. As the ceramic sensor has no filling liquid, so it won't create process pollution. And its dry-type ceramic diaphragm isn't effected by the way of installation. Because the exposed stress diaphragm at the end of clamp can directly receive the pressure, it can solve the problems like scale formation, insanitation and blocking of viscous pressure. This product can be widely used in medicine, food, liquor-making and other hygienic industries or in the field where the measuring medium is easy to scale.Features:  ·Hygienic type design, conform to GMP, EHEDG and FDA standards·The pressure core without filling liquid, suitable for food, medicine and other indutries·Flat film structure, easy to clear, and scale formation resistance·With great vibration resistance and impact resistance·Suitable for measuring absolute pressure, gauge pressure and negative pressure·Optional various output signals , can be customized according to requirementsParameters:Measuring MediumLiquid, Gas, SteamPressure Range-100kPa...0~300Pa...7MPa(Gauge pressure); 0~10kPa...7MPa(Absolute pressure)Pressure TypeGauge pressure, absolute pressure or composite pressureAccuracy±0.2%FS (Representative); ±0.5%FS (Maximum)Long-term Stability±0.1%FS/yearTemperature Coefficient of Zero±0.01%FS/ºCTemperature Coefficient of Full Scale±0.01%FS/ºCCompensation Temp-20~80ºCMedium Temp-40~125ºCSupply Voltage24VDCOutput Signal4~20mADC,0.5~4.5VDCElectrical ConnectionDIN43650, cable outlet, etc.Protection of ShellIP65Structure Drawing:   Electrical Connection:Ordering Guide:Item NO.Type HPM788Ceramic Hygienic Pressure Transmitter Pressure RangeMeasuring Range (0~X)kPaFill out X directly CodeOutput Signal B1(4~20)mAB3(0~10)VB4(0~5)VB5(1~5)V CodeThread Spec K1Tri-Clamp 1-1/2″  Quick ClampK2Tri-Clamp 2″  Quick ClampK3DIN11851 DN25  Joint NutK4DIN11851 DN40  Joint NutK5SMS DN1-1/2″  Joint NutK6SMS DN2″  Joint NutF20DN20  Flange Connection CodeElectrical Connection C1DIN43650C2Cable OutletC5M12×1 CodeStructure&MaterialM6Ceramic Capacitor CodeAdditional FunctionsY2Protective ShellY5Delicate Protecting JacketS4Thread 304 MaterialS6Thread 316L MaterialHPM788(0~1)kPaB1K1C1M6Y5 S6Related Products:Certification:FAQ:1.    Q: Are you manufacturer or trading company?        A: We are manufacturer which focuses on sensor for 10 years.2.    Q: What's your quality control system?        A: MC, ISO9001, CE Certificated.3.    Q: What is the warranty of your products?        A: Our warranty time is 18 months after shipment.  4.     Q: What is lead time of your product?         A: Normally, our factory lead time is within 10~15 working days for products without customization. You can also check lead time detail with our sales depending on different items.  5.     Q: Do you provide customized products?         A: Yes, we can laser mark your logo on products; OEM and ODM customization are welcomed.  6.     Q: What is your MOQ?        A: We have no MOQ limit, small quantity order is acceptable. 7.      Q: What's the transport?                                                                      A: Express such as DHL, FedEx, TNT, UPS for freight prepaid; and we can also use your own courier account to do the freight collect. For more goods we can arrange by air or by Sea.  8.      Q: What is your terms of payment ?           A: We could accept T/T, Paypal, WU.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
