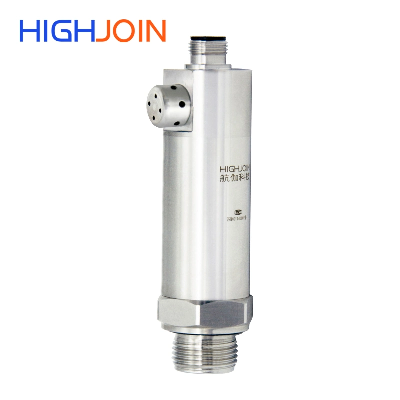

Flush Membrane compact Pressure Transmitter for Sanitary Industry

Product Overview:HPM710 Flat Film Hygienic Pressure Transmitter adopts flat film which can directly receive the pressure signal and adopts the silicon pressure core as sensitive element and the standard silicon oil or olive oil as pressure transmission medium. The measuring terminal of product uses 316L stainless steel with compact structure, corrosion resistance, vibration resistance and wide range of temperature compensation. Because the exposed stress diaphragm at the end of thread can directly receive the pressure, it can solve the problems like scale formation, insanitation and blocking of viscous pressure, especially suitable for the measurement of viscous fluid and liquid level with hygienic requirements in the fields of medicine and food.Features:·Pressure interface adopts 316L flat film structure·Hygienic type, scale formation resistance·Short-circuit protection and reverse polarity protection·With cooling fin design optional, excellent application performance for high temperature mediums·Optional various output signal , can be customized according to requirementsParameters:Measuring MediumLiquid, GasPressure Range-100kPa...0~20kPa...10MPaOverload1.5 times the full scalePressure TypeGauge, Absolute or Sealed GaugeAccuracy±0.5%FSLong-term Stability±0.25%FS/yearTemperature Coefficient of Zero±0.5%FS/ºCTemperature Coefficient of Full Scale±0.5%FS/ºCWorking Temp-20~85ºCStorage Temp-40~85ºC or -40~150ºCSupply Voltage24VDCOutput Signal4~20mADC, 0~5VDC, 1-5VDC, 0~10VDCInsulation Resistance100MΩ,500VDCProtection of ShellIP65Electrical ConnectionHirschman DIN43650Housing Material316LStructure Drawing:Pressure Port:  M20×1.5G1/2  G1High Temperature  Electrical Connection:Ordering Guide:  Item NO.Type HPM710Flat Film Hygienic Pressure Transmitter Pressure RangeMeasuring Range (0~X)kPaFill out X directly CodeOutput Signal B1(4~20)mAB3(0~10)VB4(0~5)VB5(1~5)V CodeThread Spec P2M20×1.5 Top SealedP4G1/2 Top SealedP19G1 Top Sealed CodeElectrical Connection C1DIN43650C2Cable OutletC3Aviation Connector CodeStructure&MaterialM2316L CodeAdditional FunctionsY22088 ShellY5Delicate Protecting JacketTHigh-temperature ResistanceHPM710(0~40)kPaB1P1C1M2Y5Related Products:Certification:FAQ:1.    Q: Are you manufacturer or trading company?        A: We are manufacturer which focuses on sensor for 10 years.2.    Q: What's your quality control system?        A: MC, ISO9001, CE Certificated.3.    Q: What is the warranty of your products?        A: Our warranty time is 18 months after shipment.  4.     Q: What is lead time of your product?         A: Normally, our factory lead time is within 10~15 working days for products without customization. You can also check lead time detail with our sales depending on different items.  5.     Q: Do you provide customized products?         A: Yes, we can laser mark your logo on products; OEM and ODM customization are welcomed.  6.     Q: What is your MOQ?        A: We have no MOQ limit, small quantity order is acceptable. 7.      Q: What's the transport?                                                                      A: Express such as DHL, FedEx, TNT, UPS for freight prepaid; and we can also use your own courier account to do the freight collect. For more goods we can arrange by air or by Sea.  8.      Q: What is your terms of payment ?           A: We could accept T/T, Paypal, WU./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
