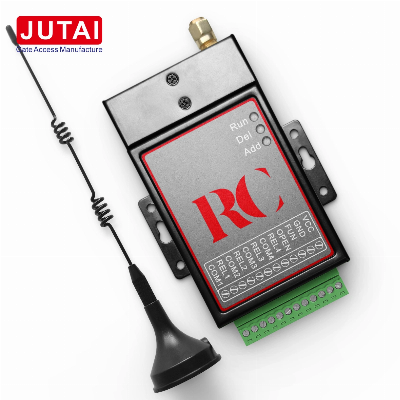

Gate Opener Receiver Controller with Wiegand Output

Product DescriptionRC-4WO is a gate receiver with Wiegand Output, it can connect to the access controller directly, the same function as access control card reader, but this works with our remote control.JUTAI Gatelink Solution includes the gate receiver, it can connect to your barrier gate controller, auto gate motor controller, etc.working with the UR-4O USB auto-opening gate (plug in the car);working with the UR-43K auto-opening gate / remote button ( plug in the car);working with the UR-U2K auto-opening gate / remote button / mobile charger (plug in the car)working with RM-4K 4 buttons remote control ( remote by your hand). working with RM-2K 2 buttons remote control (remote by your hand). Product Parameters Frequency433MHZDigital modulationASK systemCodeanti-cracking rolling codingWorking distance>35 meters in the airAdd and delete ID modethrough short-circuit or special remote controllerEncryptionvia USB cable (line should be customized)Working voltage12-24VDC,12VACStorage capacity32 ID numbers, larger capacity should be customized.Interfacerelay output/ Wiegand output  ApplicationsAutogate entry access controlBoom barrier gate entry management smart auto parking lock application  Connection DiagramFunctionsDescriptionCOM1relay 1 output: automatic openingREL1COM2relay 2 output: push-button for openREL2COM3relay 3 output: push-button for closeREL3COM4relay 4 output: push-button for stopREL4OPENmanual button for an open gateFUNADD remote(short connect the FUN and VCC)DELETE remote (short connect the FUN and GND)GND12V power supplyVCC Detailed Photos   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
