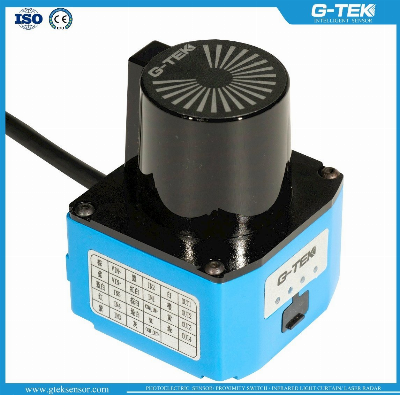

IP65 10m 10-30V Infrared NPN Lidar Sensor with CE

Product DescriptionThe LMO Series Lidar is a laser scanner based on the principle of time-of-flight ranging.High-speed scanning and high angular resolution are powerful secrets for LMO products.LMO series LIDAR can achieve 270 ° scanning, scanning range of 10m (90% reflectivity), to achieve two-dimensional area detection;With a variety of communication methods, the use of self-developed software algorithms for regional assessment; Fast scanning speed, up to 4,500 points per second cloud data;There are 32 groups of defined detection areas, high flexibility, for more efficient and more comprehensive more accurate implementation of regional detection.Industrial design, stable and reliable, Excellent light resistance and shock resistance performance, can be used both indoors and outdoors.Compact size, easy to install, suitable for factory automation, logistics automation, AGV robots, regional protection and other diverse applications fields.   Detailed Photos    Product Application     Product ParametersLMO Series Lidar SensorModelLMO101General parametersLight sourceInfrared laser(905nm)Laser gradeGrade 1 (IEC 60825-1:2014, EN 60825-1:2014)Detection scope270°Detection frequency25HzAngle resolution0.5°Work distance0.05m-10mProtection distance(10% reflectivity )6mApplicationIndoor and outdoorMechanical and electronic parameters:Electrical connection1*16 cores power cableSupply voltage10~30VDCPower< 4WProtection ratingIP65EMC protection3 levelWeight155gDimension60mm×60mm×76.5mmPerformance:Response time40msRecognizable object Almost any shape (resolution based on distance)Measurement resolution7mmRepetition accuracy±15mmQuantity of division area32 groups * 3 divided areas(total 96 areas, The first group is the default three areas )Synchronized evaluation areaEach group with 3 areasEnvironmental ParametersObject reflectivity4% - >1.000%( reflector)Anti-vibrationDouble amplitude  1mm 10 to 55Hz,  2 hours per axleShock resistance196mJ/m2, 10 times at X, Y, and reactionsWorking temperature-30ºC ~ +60ºC < 85%RH ( No condensation )Storage temperature-40ºC ~ +85ºCAnti-light interference80000luxElectrical connectionPower wireTerminal numberColorSignal DefinitionFunction DescriptionOneBrown24V+Power supply positive inputTwoBlue24V-Power supply negative inputThreeWhiteOUT1Area 1 outputFourYellowOUT3Area 3 outputFiveRed whiteNCNCSixBlackRS232TX/RS485ARS232TX/RS485ASevenPurpleRS232RS/RS485BRS232RS/RS485BEightRedRS232_GNDRS232_GND/RS485NCNineGreyCOM_OUToutput COM interfaceTenGreenOUT4Area 4 outputElevenBlue WhiteRS232_GNDRS232_GND/RS485NCTwelveOrangeOUT2Area 2 outputThirteenBrown WhiteNCNCFourteenGreen whiteNCNCModelProduct nameModelDetection distanceInput interfaceOutput interfaceLMO Laser RadarLMO101-NPN-2320.05-10m2323 area output+1 Sync output(NPN)LMO101-NPN-4850.05-10m4853 area output+1 Sync output(NPN)LMO101-NPN-IO0.05-10m5(I/O)3 area output+1 Sync output(NPN)LMO101-NPN-ENT0.05-10mEthernet3 area output+1 Sync output(NPN)LMO101-PNP-2320.05-10m2323 area output+1 Sync output(PNP)LMO101-PNP-4850.05-10m4853 area output+1 Sync output(PNP)LMO101-PNP-IO0.05-10m5(I/O)3 area output+1 Sync output(PNP)LMO101-PNP-ENT0.05-10mEthernet3 area output+1 Sync output(PNP)Certifications  Packaging & ShippingCompany ProfileTianjin G-TEK sensor technology co..ltd is indicated in providing intelligent sensor products and customized solutions for logistics automation, factory automation and process automation. The predecessor of the company is Tianjin G-TEK automation technology Co.,ltd, a professional sensor manufacturer and sensor solution provider,  which was established in 2003 with business ranges from Proximity switches, photoelectric sensors, measurement, and safety light curtains to Laser rangefinder sensors, laser radar., etc and serves for Intelligent buildings, intelligent transportation, logistics automation, factory automation and industry robot fields.Tianjin G-TEK sensor technology co.,ltd was established in 2014 in Xiqing District, Tianjin City and it will fully inherit and expand the original G-TEK automation business with the construction and operation of the new R&D and manufacturing base.FAQQ: Is the product shipped and arrived fast?A: The production cycle for large quantities of products takes 15-30 days, depending on the product.Q: Can you provide professional advice promptly?A: We have a professional technical team that can patiently help you answer all professional questions.Q: Can you provide customized products/services?A: Yes, we can provide customized products, but the customization needs to meet a certain quantity.Q: How is the quality of the product? Is the quality stable?A: G-TEK Sensors has been focusing on the sensor field for 23 years. The quality of the sensor has the double affirmation of the CE certificate and customer reputation.Q: What is your MOQ?A: We offer MOQ per piece; it depends on your specific order.Q: Is there any relevant terms of service and warranty information?A: We offer a warranty on all items.
