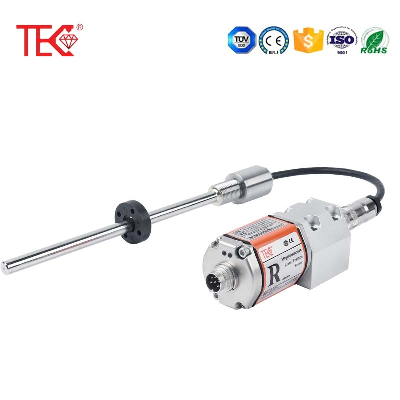

Tec Magnetostrictive Position Sensor Magnetic Cylinder Position Transducer with CE Certification

 Product ParametersOutput:SSI outputMeasuring length:25mm~5500mm,customized according to customer needs Repeat accuracy:< 0.001% for full-scale taxis, Min. ± 1µmNon-linearity:< ± 0.01% of full scale, Min. ± 50µmOperating voltage Ub:+24Vdc ± 20%Ambient temperature:Sensor rod -40ºC ~ +125ºC,electronic bin-40ºC ~ +85ºCMechanical configuration:Fastening M20 threads, Fastening M18 threads, Fastening 3/4" threadsHousing material:Aluminum alloyIP rating:IP68Approval/Conformity:CE Product DescriptionTEC magnetostrictive displacement sensor is a new generation of linear displacement sensor independently developed by ZhedaJingyi. It can provide users with real-time, reliable, accurate and continuous linear displacement signals under harsh working environment,and is widely used in metallurgical equipment, wind power equipment, construction machinery, rubber machinery, port machinery,energy and other industrial automation fields.   Installation InstructionsRD Series sensors are designed in a split form and are suitable for installation in cylinder, especially for cylinder applications in confined spaces. The sensor consists of two parts: a sensing rod and an electronic bin. The sensor rod is a pressure-resistant stainless round pipe with threads or flanges to provide protection for the sensing elements, and the whole sensor rod is installed in the cylinder through pistons. The temperature resistance of the sensing rod up to + 125ºC, and the protection level reaches IP68, which is very suitable for harsh occasions such as high temperature, high humidity and water vapor; The electronic bin encapsulates the sensor signal processing part and the external interface together, reaching IP67 protection level, and can be connected with the sensor rod through the side or bottom of the connector plate. Company Profile    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
