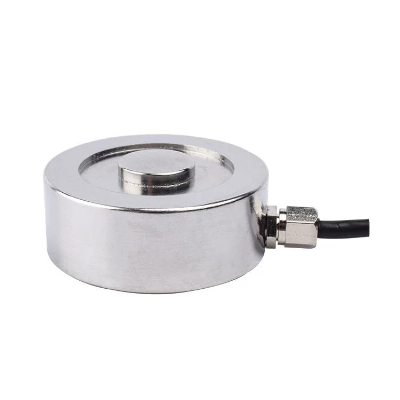

Load Button Load Cell for Weight Module Kit

Tension Compression Force Sensor, respectively tension force sensors, compression load cells and tension&compression force transducers.Depending on the shape, they can be divided into miniature button compression force sensor, pancake force sensor, donut force sensor, column type force transducer, and screw type force transducer.Tension compression force sensor are made of 17-4 stainless steel,laser welded, with high protection level.Miniature tension compression force sensor has low profile, small deflection and mini dimension, and high dynamic response frequency.Tension Compression Force Sensors are widely used in industrial test measurement control systems such as automotive press-fit, automated assembly, 3C product testing, new energy product assembly, medical testing, and robotics fields.Please contact Estee for products details and catalog→SpecificationsTechniqueCapacity100,200,300,500,1000,2000kgRated output1.5±10%mV/VZero balance±0.03 mV/VNon-linearity0.2%F.S.Hysteresis0.2%F.S.Repeatability0.1%F.S.Temp.effect on output0.05%F.S./10ºCTemp.effect on zero0.05%F.S./10ºCInput impedance780±20ΩOutput impedance700±10ΩInsulation≥5000MΩ/100VDCRecommended excitation5~15VMaximum excitation20VCompensated temp range-10~60ºCOperation temp range-20~80ºCSafe overload150%F.S.Ultimate overload200%F.S.Cable sizeφ5×3000mmThe core team of Fibos has 20 years of experience in the design and production of advanced sensors in Germany. We continuously develop and produce: precision micro and small force sensors, dynamic and static torque sensors, six-dimensional force, three-dimensional force, multi-dimensional force sensors, load cells, custom ring force sensors, thread force sensors, thread preload force sensors, sensors for robots, tension series and various non-standard force sensors, etc. The company produces pressure force sensors: accurate measurement, low height, small deformation, high precision, good stability, fast response, easy installation, long life, complete specifications and sizes, not only for push and pull meters, hopper scales, a variety of industrial weighing systems, automotive press assembly, automated assembly, 3C product testing; also used in new energy product assembly, medical testing, textiles, robotics, mold assembly, wind energy, nuclear power and ships, etc. The product dynamic response frequency is high, also can accept custom specifications. In the application of high-frequency loud, fatigue strength after the test, life use up to 100 million times, suitable for all kinds of aircraft, automotive testing occasions.         /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
